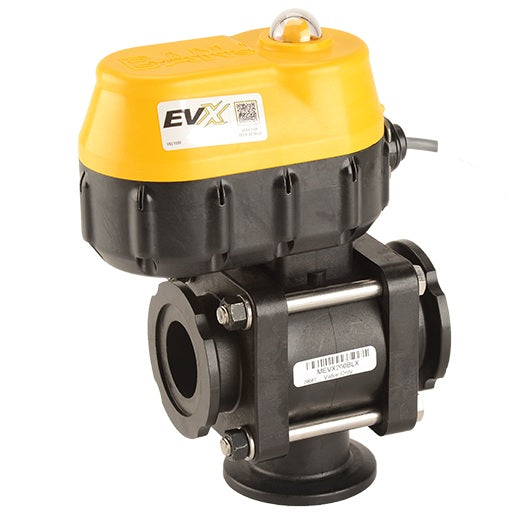

MEVX200BL by Banjo | Manifold Flange Connection | MEVX Bottom Load Electric Valve | Standard Port | 2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

MEVX200BL by Banjo | Manifold Flange Connection | MEVX Bottom Load Electric Valve | Standard Port | 2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

Save $218.69 Save $218.69
$765.42
$765.42 - $765.42
$765.42
$546.73
$546.73 - $546.73
$546.73

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX Bottom Load Electric Valve | Standard Port
Specifications for Variant SKU: MEVX200BL Banjo
Series: MEVX Series
Shape (Orientation): Tee
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF 1" has 3/4 second response.
  • ON/OFF 2" has 1-1/2 second response.
  • ON/OFF 3" has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • 1"-2" On/Off Actuator rated to 500,000 cycles.
  • 3" On/Off & Regulating Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • Zinc alloy lower actuator housing (3" only)
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Thru Ball		 Repair
Kit
MEVX100BL 1" Full Port Mainfold Bottom Load Electric Valve 300 1" 1" VP20153SH EVX10200
MEVX200BL 2" Standard Port Mainfold Bottom Load Electric Valve 250 2" 1-1/2" VP20153 EVX20200
MEVX220BL 2" Full Port Mainfold Bottom Load Electric Valve 125 2" 2" VP20153 EVX25200
MEVX300BL 3" Full Port Mainfold Bottom Load Electric Valve 125 3" 3" VP30153 EVX30200
