MF0120010 AIGNEP | ISO 6432 Cylinders Series | ISO 6432 | Double|Acting Magnetic Cylinder | 12mm x 10mm
MF0120010 by AIGNEP | ISO 6432 Cylinders Series | ISO 6432 | Double |Acting Magnetic Cylinder | 12mm x 10mm
MF0120010 by AIGNEP | ISO 6432 Cylinders Series | ISO 6432 | Double |Acting Magnetic Cylinder | 12mm x 10mm
MF0120010 AIGNEP | ISO 6432 Cylinders Series | ISO 6432 | Double|Acting Magnetic Cylinder | 12mm x 10mm

MF0120010 by AIGNEP | ISO 6432 Cylinders Series | ISO 6432 | Double |Acting Magnetic Cylinder | 12mm x 10mm

Save $19.15 Save $19.15
$47.88
$47.88 - $47.88
$47.88
$28.73
$28.73 - $28.73
$28.73
Specifications for Variant SKU: MF0120010 AIGNEP
Series: ISO 6432 Cylinders Series
Technical Characteristics:
Pressure Rating: 1 bar (0.1 MPa) / 14.5 psi 10 bar (1 MPa) / 145 psi Temperatures: 0 °C / 32 °F (-20 °C / -4 °F with dry air) + 80 °C / 176 °F
Media: Filtered and lubricated or non-lubricated compressed air Functions: Single acting magnetic or non-magnetic. Double acting single or double end rod, magnetic or non-magnetic, cushioned or non-cushioned.
Standard Strokes: from 10 to 320 mm Component Parts and Materials: • Zinc plated steel rod jam nut
• 303 Stainless steel piston rod
• Polyurethane rod seal
• Anodized aluminum end cap
• Zinc plated mounting nut
• Sintered bronze rod bearing
• NBR o-ring seals
• Neoprene bumper
• Brass piston
• Polyurethane piston sea
• Bonded ferrite magnet
• 304 Stainless steel body
• Anodized aluminum end cap

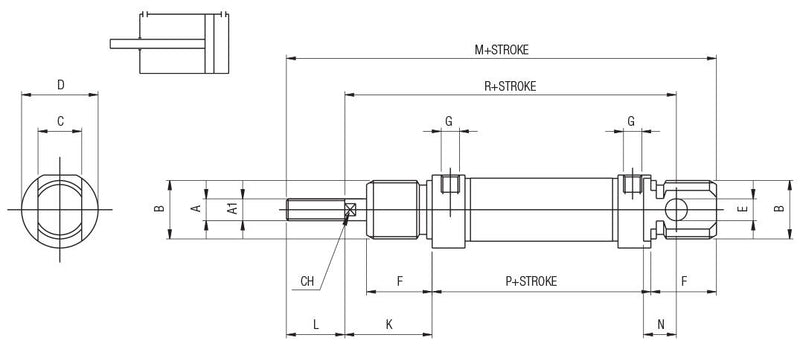

Part Number Diameter Stroke A A1 B C D E F G K L M N P R CH
MF0080010 8 mm 10 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0080025 8 mm 25 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0080050 8 mm 50 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0080080 8 mm 80 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0080100 8 mm 100 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0080125 8 mm 125 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100010 10 mm 10 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100025 10 mm 25 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100050 10 mm 50 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100080 10 mm 80 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100100 10 mm 100 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0100125 10 mm 125 mm M4 4 mm M12X1,25 8 mm 16 mm 4 mm 12 mm M5 16 mm 12 mm 86 mm 6 mm 46 mm 64 mm -
MF0120010 12 mm 10 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120025 12 mm 25 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120050 12 mm 50 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120080 12 mm 80 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120100 12 mm 100 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120125 12 mm 125 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120160 12 mm 160 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120200 12 mm 200 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0120250 12 mm 250 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 104 mm 9 mm 48 mm 75 mm 5 mm
MF0160010 16 mm 10 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160025 16 mm 25 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160050 16 mm 50 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160080 16 mm 80 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160100 16 mm 100 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160125 16 mm 125 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160160 16 mm 160 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160200 16 mm 200 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0160250 16 mm 250 mm M6 6 mm M16x1.5 12 mm 19 mm 6 mm 18 mm M5 22 mm 16 mm 109 mm 9 mm 53 mm 83 mm 5 mm
MF0200010 20 mm 10 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200025 20 mm 25 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200050 20 mm 50 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200080 20 mm 80 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200100 20 mm 100 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200125 20 mm 125 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200160 20 mm 160 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200200 20 mm 200 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200250 20 mm 250 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0200320 20 mm 320 mm M8 8 mm M22X1,5 16 mm 27 mm 8 mm 20 mm 1/8G 24 mm 20 mm 131 mm 12 mm 67 mm 95 mm 7 mm
MF0250010 25 mm 10 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250025 25 mm 25 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250050 25 mm 50 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250080 25 mm 80 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250100 25 mm 100 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250125 25 mm 125 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250160 25 mm 160 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250200 25 mm 200 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250250 25 mm 250 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
MF0250320 25 mm 320 mm M10X1,25 10 mm M22X1,5 16 mm 30 mm 8 mm 22 mm 1/8G 28 mm 22 mm 140 mm 12 mm 68 mm 104 mm 9 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
