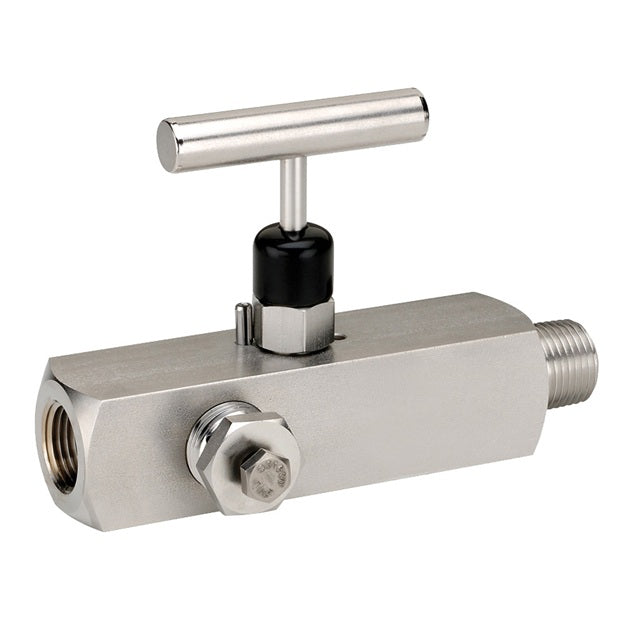

MFS204 by Dixon Valve | Multiport Needle Valve | T Design Handle | Hard Seat | 1/2" Male NPT x 1/2" Female NPT | 316 Stainless Steel

Save $31.90

$287.12

$287.12 - $287.12

$287.12

$255.22

$255.22 - $255.22

$255.22

Dixon Valve & Coupling
Multiport Needle Valve

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MFS204 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	FKM

Features:
Reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths. FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling. Stem threads are rolled for strength and ease of operation.
Materials:
Stems: 316 stainless steel
Specifications:
Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI. 1/2" Female NPT port. Orifice size is 0.187", flow coefficient: 0.44.

Part Number	Material	NPT Size	Handle Style	PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC204	Zinc Nickel Plated Steel	1/2-14	T Design Handle	10000 PSI
MFC20604	Zinc Nickel Plated Steel	3/4-14	T Design Handle	10000 PSI
MFS204	316 Stainless Steel	1/2-14	T Design Handle	10000 PSI
MFS20604	316 Stainless Steel	3/4-14	T Design Handle	10000 PSI
Soft Seat Male NPT to Female NPT
MFC304	Zinc Nickel Plated Steel	1/2-14	T Design Handle	6000 PSI
MFC30604	Zinc Nickel Plated Steel	3/4-14	T Design Handle	6000 PSI
MFS304	316 Stainless Steel	1/2-14	T Design Handle	6000 PSI
MFS30604	316 Stainless Steel	3/4-14	T Design Handle	6000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
