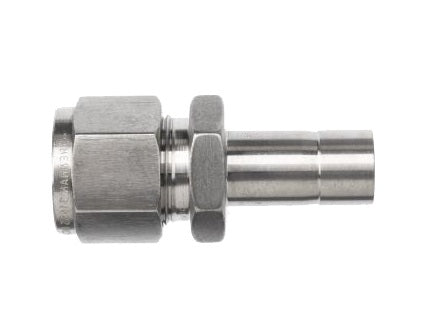

N2406-05-06-SS by Brennan Inc. | -05 Instrumentation Fitting x -06 Stand Pipe Reducer Tube | Stainless Steel

N2406-05-06-SS by Brennan Inc. | -05 Instrumentation Fitting x -06 Stand Pipe Reducer Tube | Stainless Steel

Save $2.14 Save $2.14
$19.28
$19.28 - $19.28
$19.28
$17.14
$17.14 - $17.14
$17.14

Brennan Inc.
Double Ferrule Tube Fittings: N2406 - Instrumentation Fitting x Stand Pipe Reducer Tube
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2406-05-06-SS Brennan
Material(s): Stainless Steel
Part Number Material Tube OD TX Tube OD A C D E Min. F A/F G A/F H
N2406-02-04-B Brass 1/8" 1/4" 36.0mm 15.3mm 12.7mm 4.8mm 11mm 11mm 29.5mm
N2406-04-02-B Brass 1/4" 1/8" 36.8mm 17.8mm 15.3mm 2.0mm 14.0mm 14.0mm 29.5mm
N2406-04-08-B Brass 1/4" 1/2" 46.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.9mm
N2406-06-04-B Brass 3/8" 1/4" 41.4mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 34.0mm

N2406-02-02-SS Stainless Steel 1/8" 1/8" 33.5mm 15.3mm 12.70mm 2.0mm 11.0mm 11.0mm 26.9mm
N2406-02-04-SS Stainless Steel 1/8" 1/4" 36.0mm 15.3mm 12.70mm 4.8mm 11.0mm 11.0mm 29.5mm
N2406-04-02-SS Stainless Steel 1/4" 1/8" 36.8mm 17.8mm 15.3mm 2.0mm 14mm 14mm 29.5mm
N2406-04-04-SS Stainless Steel 1/4" 1/4" 39.1mm 17.8mm 15.3mm 4.8mm 14mm 14mm 31.8mm
N2406-04-06-SS Stainless Steel 1/4" 3/8" 40.6mm 17.8mm 15.3mm 4.80mm 14.0mm 14.0mm 33.3mm
N2406-04-08-SS Stainless Steel 1/4" 1/2" 46.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.9mm
N2406-05-06-SS Stainless Steel 5/16" 3/8" 41.9mm 18.6mm 16.3mm 6.3mm 14.0mm 16.0mm 34.6mm
N2406-05-08-SS Stainless Steel 5/16" 1/2" 46.5mm 18.6mm 16.3mm 6.3mm 14.0mm 16.0mm 40.2mm
N2406-06-04-SS Stainless Steel 3/8" 1/4" 41.4mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 34.0mm
N2406-06-06-SS Stainless Steel 3/8" 3/8" 43.2mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 35.8mm
N2406-06-08-SS Stainless Steel 3/8" 1/2" 48.5mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 41.2mm
N2406-08-04-SS Stainless Steel 1/2" 1/4" 45.0mm 21.8mm 22.9mm 4.8mm 22.0mm 22.0mm 34.8mm
N2406-08-06-SS Stainless Steel 1/2" 3/8" 46.7mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 36.6mm
N2406-08-08-SS Stainless Steel 1/2" 1/2" 52.3mm 21.8mm 22.9mm 9.9mm 22.0mm 22.0mm 42.2mm
N2406-08-12-SS Stainless Steel 1/2" 3/4" 53.8mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 43.7mm
N2406-08-16-SS Stainless Steel 1/2" 1" 60.2mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 50.0mm
N2405-10-12-SS Stainless Steel 10-12" 3/4" 54.6mm 21.8mm 24.4mm 12.7mm 24.0mm 25.0mm 44.5mm
N2406-12-08-SS Stainless Steel 3/4" 1/2" 54.6mm 21.8mm 24.4mm 9.9mm 27.0mm 28.5mm 44.5mm
N2406-12-16-SS Stainless Steel 12-16" 1" 62.5mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 52.3mm
N2406-16-08-SS Stainless Steel - - - - - - - - -
