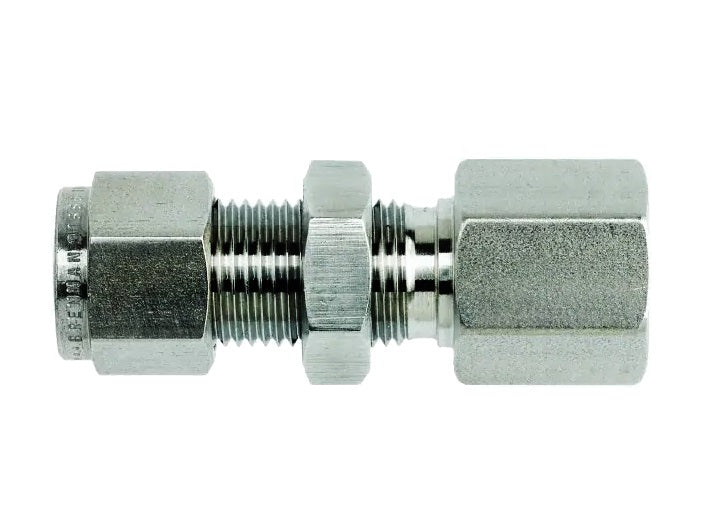

N2705-LN-06-04-SS by Brennan Inc. | -06 Instrumentation Fitting Bulkhead x -04 Female NPT | Straight | Stainless Steel

N2705-LN-06-04-SS by Brennan Inc. | -06 Instrumentation Fitting Bulkhead x -04 Female NPT | Straight | Stainless Steel

Save $5.48 Save $5.48
$49.31
$49.31 - $49.31
$49.31
$43.83
$43.83 - $43.83
$43.83

Brennan Inc.
Double Ferrule Tube Fittings: N2705-LN - Instrumentation Fitting Bulkhead x Female NPT Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2705-LN-06-04-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Female A AX B D E Min. F A/F G A/F H HX Panel Hole Drill Size Max. Panel Thickness
N2705-LN-06-04-B Brass 3/8" 1/4" 54.8mm 36.8mm 15.0mm 16.8mm 7.1mm 19.0mm 17.0mm 47.5mm 29.5mm 14.7mm 11.2mm

N2705-LN-02-02-SS Stainless Steel 1/8" 1/8" 44.7mm 31.2mm 10.4mm 12.7mm 2.4mm 14.0mm 11.0mm 38.1mm 24.6mm 8.3mm 12.7mm
N2705-LN-04-02-SS Stainless Steel 1/4" 1/8" 47.0mm 33.5mm 10.4mm 15.3mm 4.8mm 16.0mm 14.0mm 39.7mm 26.2mm 11.5mm 10.2mm
N2705-LN-04-04-SS Stainless Steel 1/4" 1/4" 51.5mm 33.5mm 15.0mm 15.3mm 4.8mm 19.0mm 14.0mm 44.2mm 26.2mm 11.5mm 10.2mm
N2705-LN-06-04-SS Stainless Steel 3/8" 1/4" 54.8mm 36.8mm 15.0mm 16.8mm 7.1mm 19.0mm 17.0mm 47.5mm 29.5mm 14.7mm 11.2mm
N2701-LN-08-06-SS Stainless Steel 1/2" 3/8" 61.7mm 41.9mm 15.0mm 22.9mm 10.4mm 22.0mm 22.0mm 51.6mm 31.0mm 19.5mm 12.7mm
N2705-LN-08-08-SS Stainless Steel 1/2" 1/2" 66.7mm 41.9mm 19.8mm 22.9mm 10.4mm 27.0mm 22.0mm 56.6mm 31.0mm 19.5mm 12.7mm
N2705-LN-10-08-SS Stainless Steel 5/8" 1/2" 67.6mm 42.7mm 19.8mm 22.9mm 12.7mm 27.0mm 25.0mm 57.4mm 32.5mm 22.6mm 12.7mm
N2705-LN-12-08-SS Stainless Steel 3/4" 3/4" 72.4mm 47.5mm 19.8mm 24.4mm 16.0mm 35.0mm 28.5mm 62.3mm 37.4mm 25.8mm 16.8mm
N2705-LN-12-12-SS Stainless Steel 3/4" 3/4" 74.7mm 47.5mm 20.6mm 24.4mm 16.0mm 35.0mm 28.5mm 64.3mm 37.4mm 25.8mm 16.8mm
N2705-LN-16-12-SS Stainless Steel - - - - - - - - - - - - -
N2705-LN-16-16-SS Stainless Steel 1" 1" 84.3mm 57.4mm 20.6mm 31.2mm 16.0mm 35.0mm 38.0mm 72.1mm 45.2mm 33.7mm 19.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
