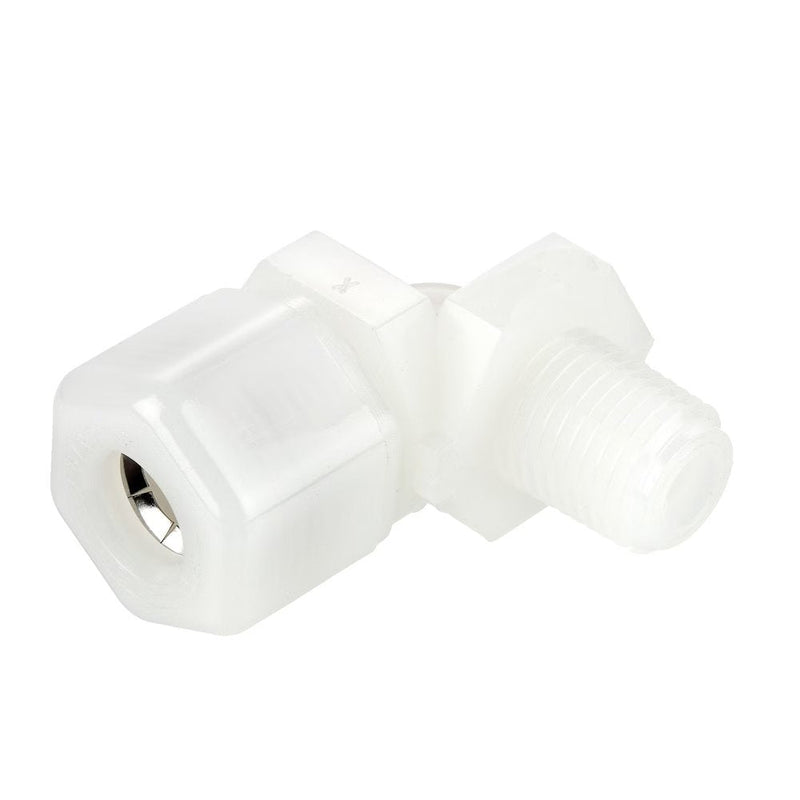

N6ME6 by Parker | Threaded Fitting | 3/8" Tube OD x 3/8" Male NPTF Thread | 7/8" Hex | 90° Elbow | Natural | Nylon

N6ME6 by Parker | Threaded Fitting | 3/8" Tube OD x 3/8" Male NPTF Thread | 7/8" Hex | 90° Elbow | Natural | Nylon

Save $3.69 Save $3.69
$6.25
$6.25 - $6.25
$6.25
$2.56
$2.56 - $2.56
$2.56

by Parker Hannifin
Fast & Tite® Fittings:ME - Male Elbow
Specifications for Variant SKU: N6ME6 Parker
Brand: Fast & Tite®
Series: ME Series
Shape (Orientation): 90° Elbow
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4ME2 N4ME2 1/4" 1/8" 3/4" 1.06" .81" .170"
P4ME4 N4ME4 1/4" 1/4" 3/4" 1.06" 1.02" .170"
P4ME6 N4ME6 1/4" 3/8" 3/4" 1.06" 1.02" .170"
P5ME2 - 5/16" 1/8" 3/4" 1.06" .81" .193"
P5ME4 N5ME4 5/16" 1/4" 3/4" 1.06" 1.02" .193"
P5ME6 - 5/16" 3/8" 3/4" 1.06" 1.02" .193"
P6ME4 N6ME4 3/8" 1/4" 7/8" 1.28" 1.12" .250"
P6ME6 N6ME6 3/8" 3/8" 7/8" 1.28" 1.12" .250"
P6ME8 N6ME8 3/8" 1/2" 1" 1.28" 1.34" .250"
P6ME12 N6ME12 3/8" 3/4" 1-3/16" 1.06" 1.02" .170"
P8ME4 N8ME4 1/2" 1/4" 1-1/16" 1.48" 1.22" .250"
P8ME6 N8ME6 1/2" 3/8" 1-1/16" 1.56" 1.21" .375"
P8ME8 N8ME8 1/2" 1/2" 1-1/16" 1.56" 1.34" .375"
P8ME12 - 1/2" 3/4" 1-1/8" 1.50" 1.40" .375"
P10ME8 N10ME8 5/8" 1/2" 1-3/16" 1.72" 1.40" .500"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
