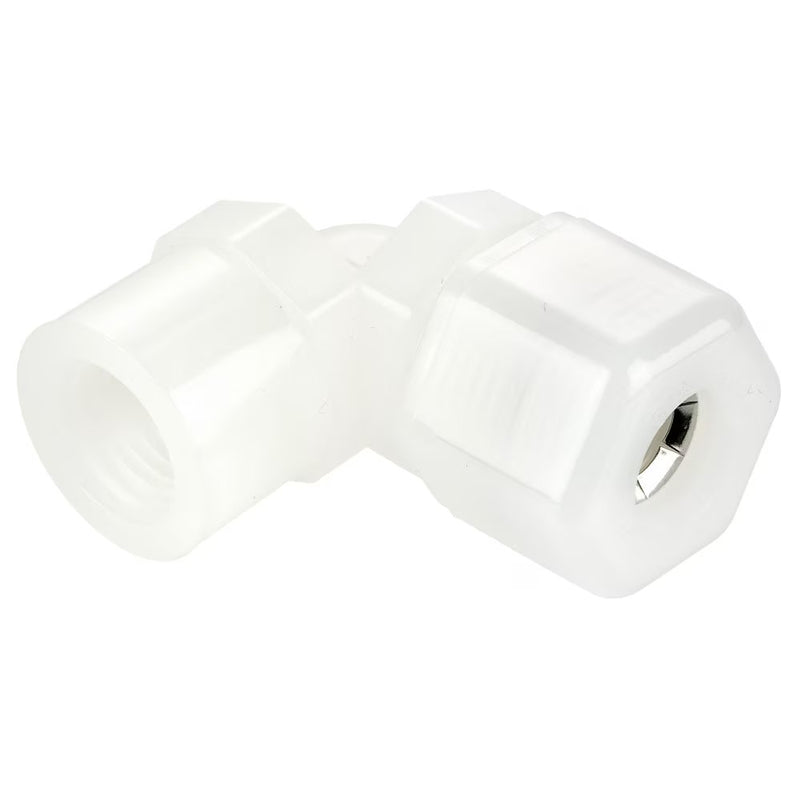

N8FE6 by Parker | Threaded Fitting | 1/2" Tube OD x 3/8" Female NPTF Thread | 1" Hex | 90° Elbow | Natural | Nylon

N8FE6 by Parker | Threaded Fitting | 1/2" Tube OD x 3/8" Female NPTF Thread | 1" Hex | 90° Elbow | Natural | Nylon

Save $4.85 Save $4.85
$8.38
$8.38 - $8.38
$8.38
$3.53
$3.53 - $3.53
$3.53

by Parker Hannifin
Fast & Tite® Fittings:FE - Female Elbow
Specifications for Variant SKU: N8FE6 Parker
Brand: Fast & Tite®
Series: FE Series
Shape (Orientation): 90° Elbow
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4FE2 N4FE2 1/4" 1/8" 11/16" 1.10" .84" .170"
P4FE4 N4FE4 1/4" 1/4" 11/16" 1.10" .94" .170"
- N5FE2 5/16" 1/8" 11/16" 1.10" .84" .193"
P6FE4 N6FE4 3/8" 1/4" 13/16" 1.30" 1.06" .250"
P6FE6 N6FE6 3/8" 3/8" 13/16" 1.30" 1.03" .250"
P8FE6 N8FE6 1/2" 3/8" 1" 1.50" 1.16" .375"
P8FE8 N8FE8 1/2" 1/2" 1" 1.50" 1.27" .375"
P10FE8 N10FE8 5/8" 1/2" 1-1/8" 1.70" 1.34" .500"
