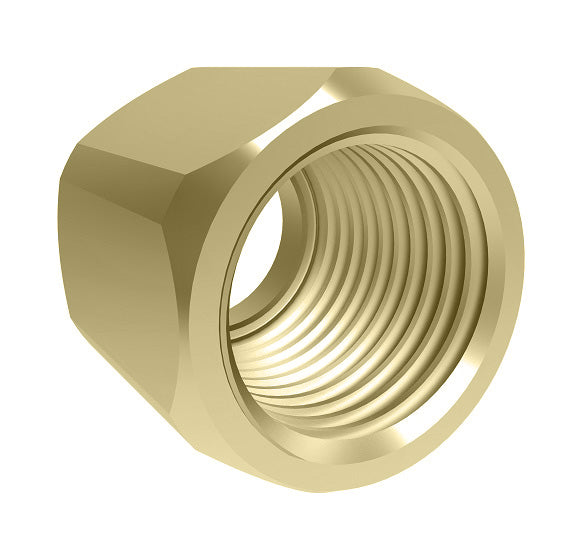

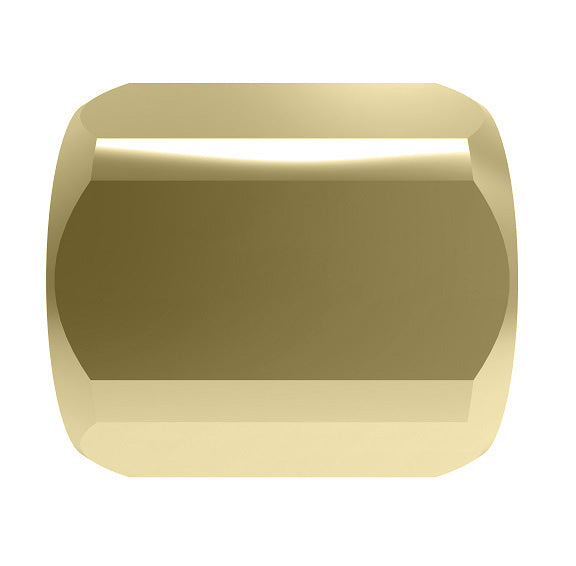

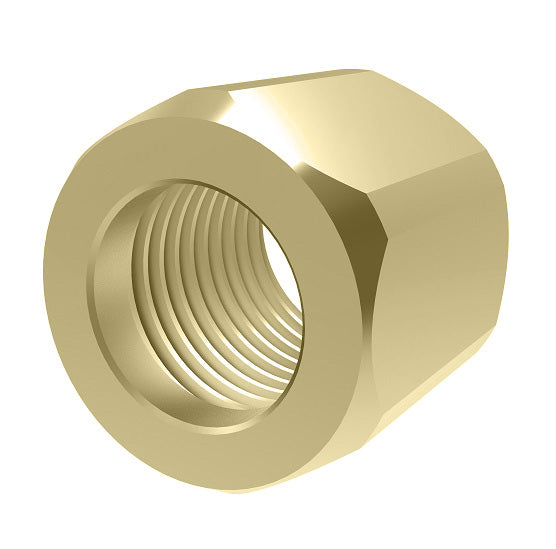

NNJ-20-B Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 1-1/8" Hose ID x 1-1/4" Female 37° JIC | Brass
NNJ-20-B Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 1-1/8" Hose ID x 1-1/4" Female 37° JIC | Brass
NNJ-20-B Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 1-1/8" Hose ID x 1-1/4" Female 37° JIC | Brass
NNJ-20-B Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 1-1/8" Hose ID x 1-1/4" Female 37° JIC | Brass

NNJ-20-B Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 1-1/8" Hose ID x 1-1/4" Female 37° JIC | Brass

$58.71 - $58.71
$58.71
$58.71 - $58.71
$58.71

Weatherhead by Danfoss
Everswage Crimp Fitting for Everflex Hose - Female 37° JIC Nut - Straight
Specifications for Variant SKU: NNJ-20-B Danfoss
Brand: Weatherhead
Series: Everswage Series
Material(s): Brass
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
  • The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
  • For use with Everflex Hose Series S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Brass		 Part Number
Carbon Steel		 Part Number
Stainless Steel		 Part Number
316 Stainless Steel		 Hose I.D. JIC Size
NNJ-4-B NNJ-4-C NNJ-4-S NNJ-4-316 3/16" 1/4"
NNJ-5-B NNJ-5-C NNJ-5-S - 1/4" 5/16"
NNJ-6-B NNJ-6-C NNJ-6-S - 5/16" 3/8"
NNJ-8-B NNJ-8-C NNJ-8-S - 13/32" 1/2"
NNJ-10-B NNJ-10-C NNJ-10-S - 1/2" 5/8"
NNJ-12-B NNJ-12-C NNJ-12-S - 5/8" 3/4"
NNJ-16-B NNJ-16-C - - 7/8" 1"
NNJ-20-B NNJ-20-C NNJ-20-S - 1-1/8" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
