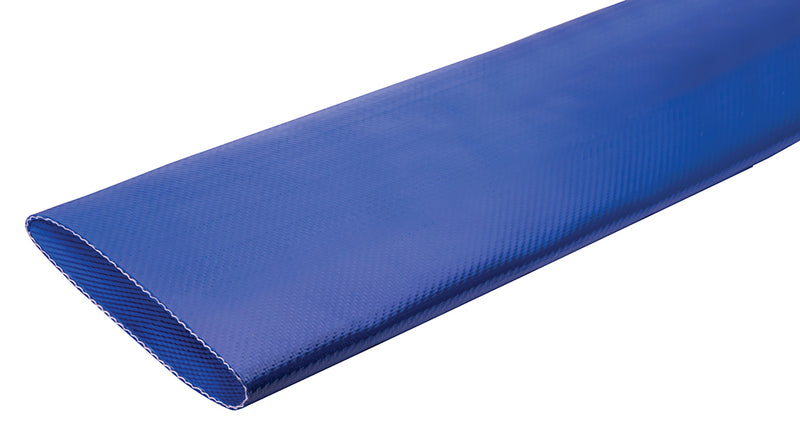

OFAQ-150X660 OROFLEX® AQUA by Kuriyama | OFAQ Series | Potable Water Discharge Layflat Hose | Polyurethane | 1-1/2" Size | 1.559" Hose ID | Blue | 660ft Length

Save $513.37

$2,235.97

$2,235.97 - $2,235.97

$2,235.97

$1,722.60

$1,722.60 - $1,722.60

$1,722.60

Kuriyama
OROFLEX® AQUA | OFAQ Series | Potable Water Discharge Layflat Hose

Designed for safe, sanitary use in potable water systems.

Ideal for drinking water transport, emergency supply, food and beverage transfer, marine potable water service, and water or sewer treatment applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Specifications for Variant SKU: OFAQ-150X660 Kuriyama \| 660 \|
Brand:	OROFLEX AQUA
Series:	OFAQ Series
Hose Color(s):	Blue
Internal Diameter:	1.559in
Tubing Construction:	TPU
Cover Construction:	TPU
Applicable Specs & Approvals:	NSF 61

SPECIFICATIONS

Other Features:
Applications:	Drinking water transport Emergency water supply Liquid and powder food transfer Potable water to transfer ships/boats Sewer and water treatment
Construction:	Blue NSF-61 polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-58°F (-50°C) to +122°F (+50°C); Intermittent service to +175°F (+79°C)
Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products. NSF-61 Certified - Hose is certified under NSF/ANSI 61: Drinking Water System Components. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Longer Lengths - Available in 200 foot lengths and also longer 660 foot lengths to reduce possible leaking points. Smooth TPU Tube - Provides low friction loss. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Made in Europe.

Part Number 200ft	Part Number 660ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure	Tensile Strength
Part Number 200ft	Part Number 660ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F	(lbs)
OFAQ-100X200	OFAQ-100X660	1"	25.4mm	1.004"	25.5mm	0.071"	240 PSI	725 PSI	0.11 lbs
OFAQ-150X200	OFAQ-150X660	1-1/2"	38.1mm	1.559"	39.6mm	0.079"	300 PSI	900 PSI	0.24 lbs
OFAQ-200X200	OFAQ-200X660	2"	50.8mm	2.059"	52.3mm	0.075"	240 PSI	600 PSI	0.26 lbs
OFAQ-250X200	OFAQ-250X660	2-1/2"	63.5mm	2.618"	66.5mm	0.090"	240 PSI	600 PSI	0.35 lbs
OFAQ-300X200	OFAQ-300X660	3"	76.2mm	3.059"	77.7mm	0.093"	240 PSI	600 PSI	0.43 lbs
OFAQ-400X200	OFAQ-400X660	4"	101.6mm	4.059"	103.1mm	0.106"	240 PSI	600 PSI	0.67 lbs
OFAQ-600X200	OFAQ-600X660	6"	152.4mm	6.020"	152.9mm	0.138"	240 PSI	600 PSI	1.18 lbs
