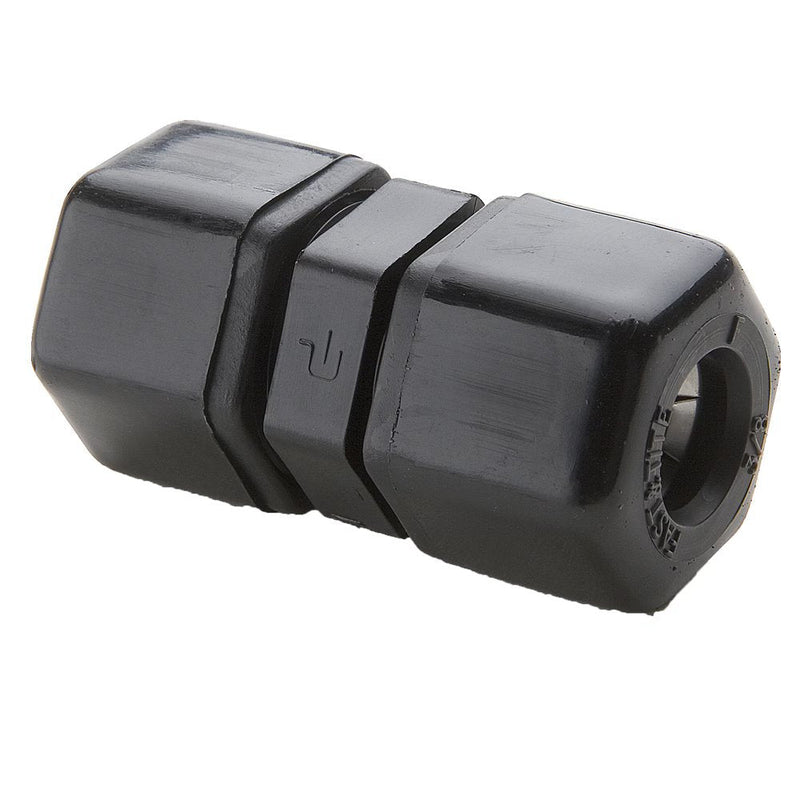

P10UC8 by Parker | Tube to Tube Fitting | 5/8" Tube OD x 1/2" Tube OD Connector | 1-1/8" Hex | 2.24" Length | Straight | Black | Polypropylene

P10UC8 by Parker | Tube to Tube Fitting | 5/8" Tube OD x 1/2" Tube OD Connector | 1-1/8" Hex | 2.24" Length | Straight | Black | Polypropylene

Save $0.28 Save $0.28
$3.25
$3.25 - $3.25
$3.25
$2.97
$2.97 - $2.97
$2.97

by Parker Hannifin
Fast & Tite® Fittings:UC - Union Connector
Specifications for Variant SKU: P10UC8 Parker
Brand: Fast & Tite®
Series: UC Series
Shape (Orientation): Straight
Material(s): Polypropylene, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. Hex (C) Overall Length (L) Flow Diameter (D)
P4UC4 W4UC4 N4UC4 1/4" 11/16" 1.62" .170"
P5UC4 - N5UC4 5/16" - 1/4" 11/16" 1.62" .170"
P5UC5 - N5UC5 5/16" 11/16" 1.62" .190"
P6UC4 - N6UC4 3/8" - 1/4" 13/16" 1.80" .170"
P6UC5 - N6UC5 3/8" - 5/16" 13/16" 1.80" .190"
P6UC6 W6UC6 N6UC6 3/8" 13/16" 1.92" .250"
P8UC6 W8UC6 N8UC6 1/2" - 3/8" 1" 1.95" .250"
P8UC8 W8UC8 N8UC8 1/2" 1" 2.03" .375"
P10UC6 - N10UC6 5/8" - 3/8" 1-1/8" 2.19" .250"
P10UC8 - N10UC8 5/8" - 1/2" 1-1/8" 2.24" .375"
P10UC10 - N10UC10 1/4" 1-1/8" 2.40" .500"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
