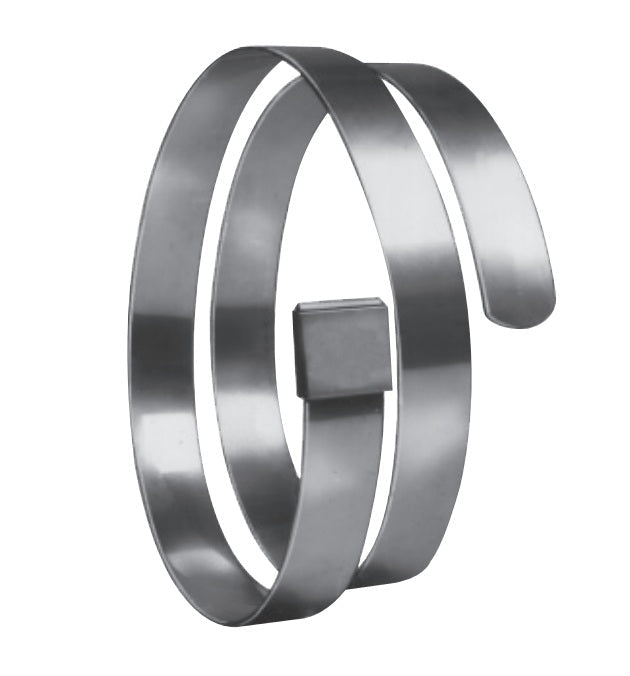

P132000 (PO-20) PUNCH-LOK® by PT-Coupling | Open-End Clamp | 5" Clamp ID | 5/8" Band Width | High Strength Galvanized Carbon Steel | 50 Pieces/Carton

P132000 (PO-20) PUNCH-LOK® by PT-Coupling | Open-End Clamp | 5" Clamp ID | 5/8" Band Width | High Strength Galvanized Carbon Steel | 50 Pieces/Carton

Save $55.86 Save $55.86
$150.47
$150.47 - $150.47
$150.47
$94.61
$94.61 - $94.61
$94.61

PT Coupling
PUNCH-LOK® | Open-End Clamp | High Strength Galvanized Carbon Steel

Non-spring coiled to a given diameter but not laced up through the lok.

Made in the USA.

Package Quantity: 50 Units

Specifications for Variant SKU: P132000 PT-Coupling
Brand: PUNCH-LOK
Series: Open-End Clamps
Material(s): Galvanized Carbon Steel

PRODUCT DESCRIPTION

PT Coupling - PUNCH-LOK® - Punch Type Clamps - Open-End Clamps - High-Strength Galvanized Carbon Steel
Features:
  • Double-Wrapped and formed to a given diameter.
  • Clamps come ready for application.
  • Non-spring coiled to a given diameter but not laced up through the Lok.
  • Made in the USA
To Order:
  • Measure the Outside Diameter of the hose with its fitting inserted.
  • Then select the next larger Inside Diameter clamp by catalog number. Using the hose size in inches is not sufficient information, because different thickness of hose will result in varying outside diameters.
These Clamps are also Available in the Following Materials:
Accessories:

Part
Name		 Item # Clamp ID Band Width Quantity/Carton
PO-3 P130300 13/16" 3/8" 100
PO-311 P130311 1-3/8" 3/8" 100
PO-316 P130316 2" 3/8" 100
PO-325 P130325 3-1/8" 3/8" 100
PO-8 P130800 2" 5/8" 100
PO-10 P131000 2-1/2" 5/8" 50
PO-12 P131200 3" 5/8" 50
PO-14 P131400 3-1/2" 5/8" 50
PO-16 P131600 4" 5/8" 50
PO-18 P131800 4-1/2" 5/8" 50
PO-20 P132000 5" 5/8" 50
PO-24 P132400 6" 5/8" 50
PO-28 P132800 7" 5/8" 25
PO-32 P133200 8" 5/8" 25
PO-36 P133600 9" 5/8" 25
PO-40 P134000 10" 5/8" 25
PO-48 P134800 12" 5/8" 25
Special Order Clamps:
PO-313 P130313 1-5/8" 3/8" 100
PO-320 P130320 2-1/2" 3/8" 100
PO-328 P130328 3-1/2" 3/8" 100
PO-332 P130332 4" 3/8" 100
PO-336 P130336 4-1/2" 3/8" 100
PO-340 P130340 5" 3/8" 100
PO-344 P130344 5-1/2" 3/8" 100
PO-348 P130348 6" 3/8" 100
PO-352 P130352 6-1/2" 3/8" 100
PO-356 P130356 7" 3/8" 100
PO-358 P130358 7-1/4" 3/8" 100
PO-56 P135600 14" 5/8" 10
PO-64 P136400 16" 5/8" 10
PO-72 P137200 18" 5/8" 10
PO-80 P138000 20" 5/8" 10
PO-96 P139600 24" 5/8" 10
PO-120 P139920 30" 5/8" 10
PO-144 P139944 36" 5/8" 10
PO-168 P139968 42" 5/8" 10
PO-192 P139992 48" 5/8" 10

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
