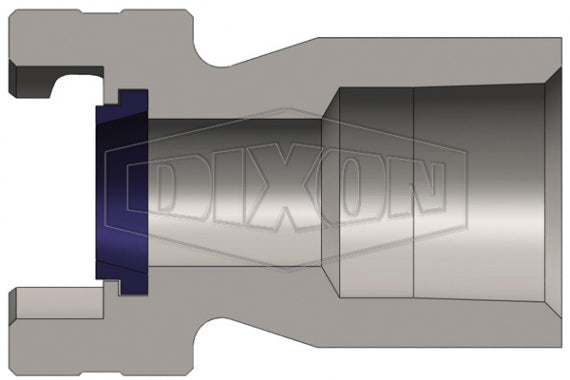

P4F6-9 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | 3/4" Female NPTF x 1/2" Body Size | Plug | Nitrile Seal | Steel/PTFE Coating

Save $2.94

$26.43

$26.43 - $26.43

$26.43

$23.49

$23.49 - $23.49

$23.49

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Plug (Female Threads)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: P4F6-9 Dixon
Series:	P-Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPTF, Thor QD Interchange
Material(s):	Steel, PTFE
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Thor Finger-Lock Interchange Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dual-Lock P-Series \| Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
P4F3	Plug/Male	1/2"	3/8" - 18 Female NPTF	Steel	1.79" (45.5mm)	1.55" (39.4mm)	7/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	2.25" (57.2mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F4-B	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	2.25" (57.2mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	3500 PSI (240 bar)
P4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F6-9	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel/PTFE Coating	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F6-B	Plug/Male	1/2"	3/4" - 14 Female NPTF	Brass	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	3500 PSI (240 bar)
P4F6-S	Plug/Male	1/2"	3/4" - 14 Female NPTF	303 Stainless	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	4500 PSI (310 bar)
P4F8	Plug/Male	1/2"	1" - 11-1/2 Female NPTF	Steel	2.76" (70.1mm)	1.55" (39.4mm)	1-7/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F8-B	Plug/Male	1/2"	1" - 11-1/2 Female NPTF	Brass	2.76" (70.1mm)	1.55" (39.4mm)	1-7/16"	300 PSI (20 bar)	3500 PSI (240 bar)

Dual-Lock P-Series \| Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
4PF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	2600 PSI (180 bar)
4PF6	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	2600 PSI (180 bar)
4PF6-B	Socket/Female	1/2"	3/4" - 14 Female NPTF	Brass	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	3500 PSI (240 bar)
4PF6-S	Socket/Female	1/2"	3/4" - 14 Female NPTF	303 Stainless	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	4500 PSI (310 bar)
