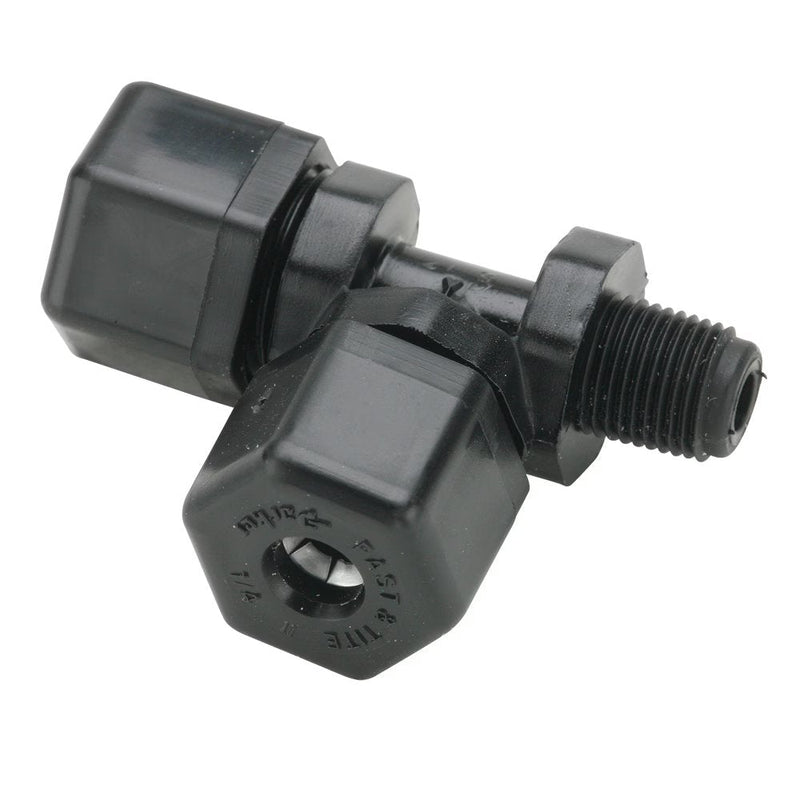

P4MR2 by Parker | Threaded Fitting | 1/4" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 1.98" Length | Tee | Black | Polypropylene

Save $2.45

$6.12

$6.12 - $6.12

$6.12

$3.67

$3.67 - $3.67

$3.67

by Parker Hannifin
Fast & Tite® Fittings:MR - Male Run Tee

Specifications for Variant SKU: P4MR2 Parker
Brand:	Fast & Tite®
Series:	MR Series
Shape (Orientation):	Tee
Material(s):	Polypropylene, 302 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black Polypropylene Part Number	Natural Nylon Part Number	Nom. Tube O.D.	NPTF Thread Size	Hex (C)	M	N	Flow Diameter (D)
P4MR2	N4MR2	1/4"	1/8"	11/16"	1.09"	.89"	.170"
P6MR4	N6MR4	3/8"	1/4"	13/16"	1.30"	1.17"	.250"
P8MR6	-	1/2"	3/8"	1"	1.46"	1.28"	.375"
