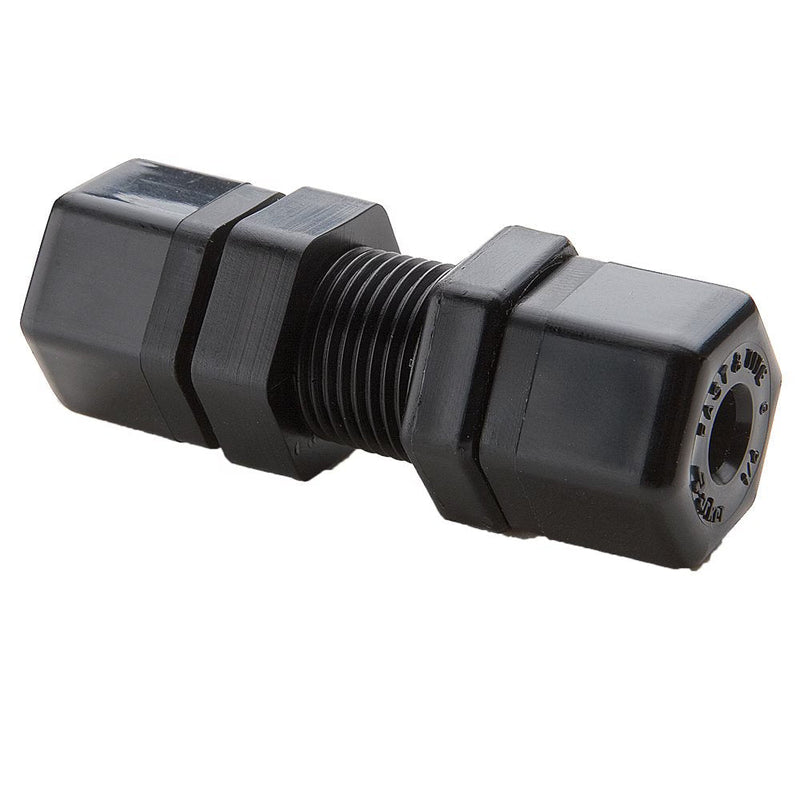

P8BU8 by Parker | Bulkhead Union | 1/2" Tube OD | 1-5/32" Hex | 2.75" Length | Straight | Black | Polypropylene

P8BU8 by Parker | Bulkhead Union | 1/2" Tube OD | 1-5/32" Hex | 2.75" Length | Straight | Black | Polypropylene

Save $0.54 Save $0.54
$6.63
$6.63 - $6.63
$6.63
$6.09
$6.09 - $6.09
$6.09

by Parker Hannifin
Fast & Tite® Fittings:BU - Bulkhead Union
Specifications for Variant SKU: P8BU8 Parker
Brand: Fast & Tite®
Series: BU Series
Shape (Orientation): Straight
Material(s): Polypropylene, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number White Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. A Ref. Hex (C) Overall Length (L) Max (P) Flow Diameter (D) Bulkhead Hole Drill Size
P4BU4 W4BU4 N4BU4 1/4" 1/4" 13/16" 2.17" 3/8" .170" 21/32"
P5BU5 - N5BU5 5/16" 1/4" 13/16" 2.17" 3/8" .187" 21/32"
P6BU6 W6BU6 N6BU6 3/8" 9/32" 15/16" 2.61" 1/2" .250" 25/32"
P8BU8 W8BU8 N8BU8 1/2" 5/16" 1-5/32" 2.75" 1/2" .375" 31/32"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
