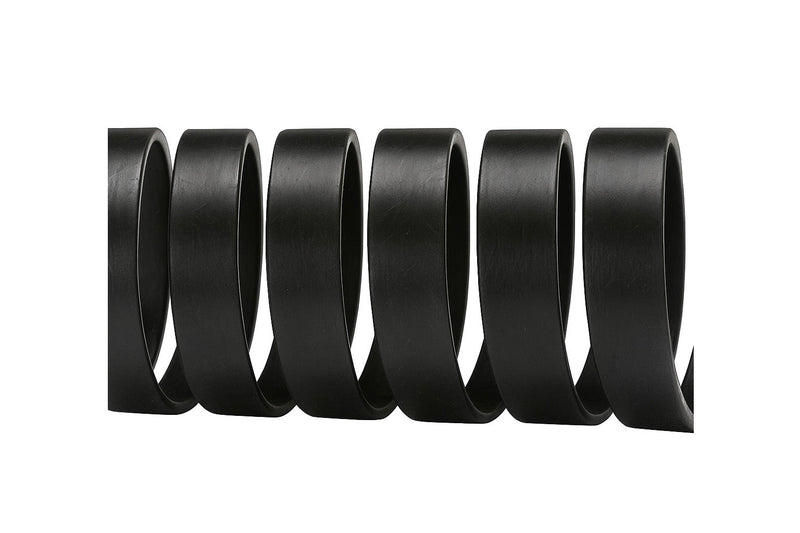

PCG-16-H Alfagomma by Kuriyama | PCG Series | Hose Protector | Coil Sleeve | 0.50" ID | 0.069" Wall Thickness | 100ft Roll Length | Plastic

PCG-16-H Alfagomma by Kuriyama | PCG Series | Hose Protector | Coil Sleeve | 0.50" ID | 0.069" Wall Thickness | 100ft Roll Length | Plastic

Save $68.96 Save $68.96
$241.35
$241.35 - $241.35
$241.35
$172.39
$172.39 - $172.39
$172.39

Kuriyama of America Inc.
Alfagomma | Hose Protector | PCG Series | Flat Coil Sleeve - Plastic

ALFAGOMMA Plastic Protective Flat Coil Sleeves prolong the life of hose lines that are exposed to rugged operating conditions.
Specifications for Variant SKU: PCG-16-H Kuriyama
Brand: Alfagomma
Series: PCG Series
Material(s): Plastic
Features:
  • The high density polyethylene plastic coil sleeve is air, water, oil, gasoline and hydraulic fluid-resistant and withstands temperatures from -60°F (-51°C) to +175°F (+79°C).
  • This coil can also be used for bundling groups of hoses. Other colors available on request.
  • Material: High Density Polyethylene Plastic
Part Number ID (in) Wall Thickness (in) For Use on These Hoses Roll Length (ft) Weight(lbs/coil)
PCG-16-H 0.50" 0.069" TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT5K, ABT6K 100ft 6.00 Lbs
PCG-20-H 0.66" 0.075" TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT6K 100ft 9.00 Lbs
PCG-25-H 0.75" 0.122" TR1MT, TF2MT/ST , TR2MT, ABT4K, ABT6K 100ft 14.00 Lbs
PCG-32-H 1.00" 0.118" TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT6K 100ft 21.00 Lbs
PCG-39-H 1.25" 0.132" TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT5K, ABT6K 100ft 20.00 Lbs
PCG-50-H 1.60" 0.150" TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K 100ft 17.00 Lbs
PCG-59-H 2.00" 0.160" TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K 100ft 41.00 Lbs
PCG-75-H 2.50" 0.209" TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K 75ft 36.00 Lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
