PF415CP-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF415CP Series | SAE 100R3 | Constant Pressure Hydraulic Hose | 1/4" ID | 0.410" OD | 1500 PSI | 250ft Length

Save $136.00

$476.00

$476.00 - $476.00

$476.00

$340.00

$340.00 - $340.00

$340.00

Kuriyama of America Inc.

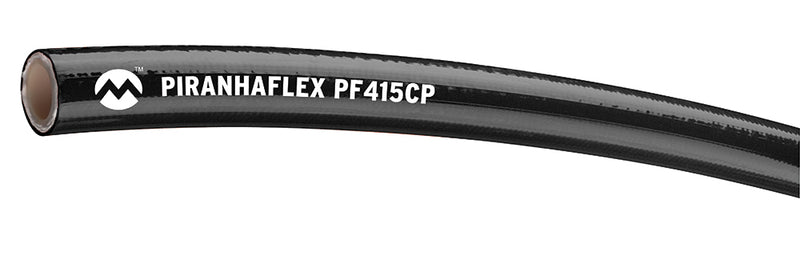

Alfagomma Piranhaflex | PF415CP Series | SAE 100R3 | Constant Pressure Hydraulic Hose

Made in the USA.

For Lower pressure hydraulic applications, industrial equipment and vehicles, such as used in construction, agriculture and material handling.

Package Quantity: 250 Feet

Specifications for Variant SKU: PF415CP-04-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF415CP Series
Hose Color(s):	Black
Dash Size:	-04
Internal Diameter:	0.25in
Outer Diameter:	0.410in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R3
Special Properties:	Conductive Hose Cover, Pin Pricked Hose Cover
Compatible with the following Series:	PFR3 Series

Other Features:
Application:	Lower pressure hydraulic applications. Industrial equipment and vehicles, such as used in construction, agriculture and material handling	SAE Rating:	Meets or exceeds SAE 100R3
Other Ratings:	-	Tube:	Nylon

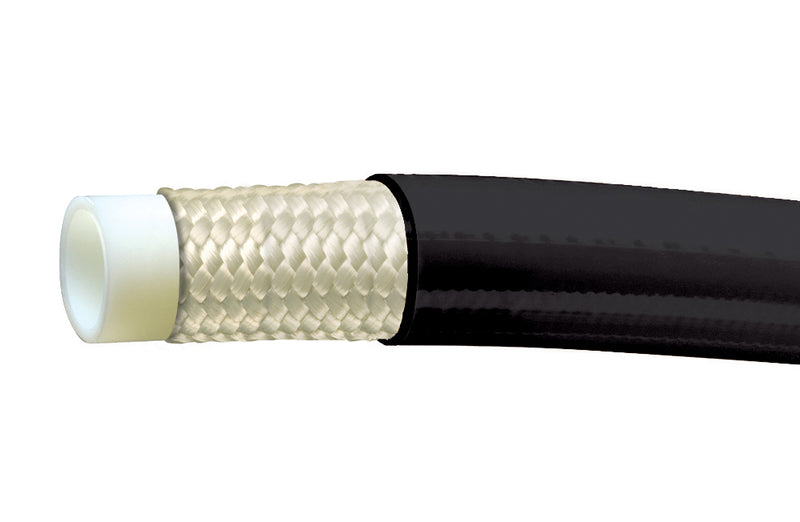

Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant, conductive polyurethane
Service Temperature Range:	-40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Isobaric - Consistent 1,500 PSI working pressure regardless of hose size. Eliminates user risk of hose misapplication within a given pressure system. Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 45% lighter weight than similar rubber hoses. Pin Pricked Cover - Allows for the escape of gasses should they potentially become trapped between the layers, preventing instances of cover blistering. NOTE: Boxed 250ft long reels. Max two pieces per reel, minimum pc. length 50ft.

Part Number 250ft Reel	ID		OD		Max. Working Pressure*	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF415CP-04-250R	1/4"	6.4mm	0.410"	10.4mm	1500 PSI	1.50"	38.1mm	0.05 lbs/ft
PF415CP-05-250R	5/16"	8.1mm	0.520"	13.2mm	1500 PSI	1.75"	44.5mm	0.07 lbs/ft
PF415CP-06-250R	3/8"	9.7mm	0.610"	15.5mm	1500 PSI	2.50"	63.5mm	0.10 lbs/ft
PF415CP-08-250R	1/2"	13.1mm	0.750"	19.1mm	1500 PSI	3.00"	76.2mm	0.12 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
