Kuriyama of America Inc.

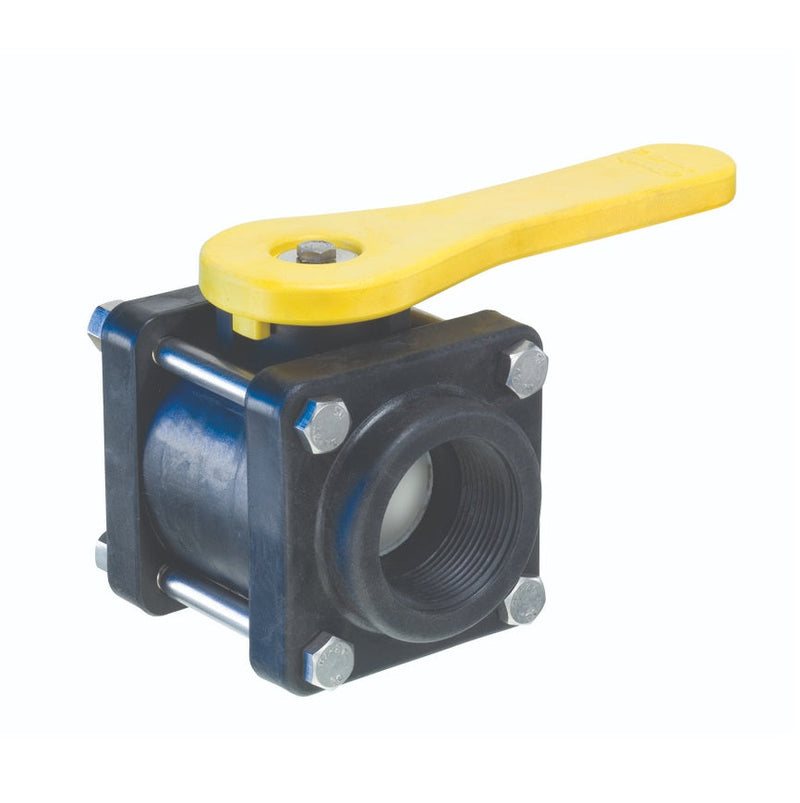

PPBV Series | Ball Valve | Polypropylene

Full Port design allows free flow of material.

Polypropylene material is glass filled for added strength and durability.

Specifications for Variant SKU: PPBV050 Kuriyama
Series:	PPBV Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Polypropylene

What are the Features?

Polypropylene material is glass filled for added strength and durability.
Precision molded to ensure consistency in form and function.
Full Port design allows free flow of material.

What are the Materials?

Glass filled polypropylene.
Teflon™ seals.
Viton® O Ring stems and seals.
Stainless steel nuts and bolts.

Viton® is a registered trademark of The Chemours Company FC, LLC.
Teflon® is a registered trademark of The Chemours Company FC, LLC.

Part Number	Size (in)	Bolt Count	Threads	PSI Rating at 70°F	Weight Each (lbs)
PPBV050	1/2"	4	Female NPT	150 PSI	0.88 lbs
PPBV075	3/4"	4	Female NPT	150 PSI	0.85 lbs
PPBV100	1"	4	Female NPT	150 PSI	1.16 lbs
PPBV125	1-1/4"	4	Female NPT	150 PSI	1.65 lbs
PPBV150	1-1/2"	4	Female NPT	150 PSI	1.67 lbs
PPBV200	2"	6	Female NPT	100	3.71 lbs
PPBV300	3"	6	Female NPT	100	6.60 lbs
PPBV400	4"	6	Female NPT	100	9.90 lbs
