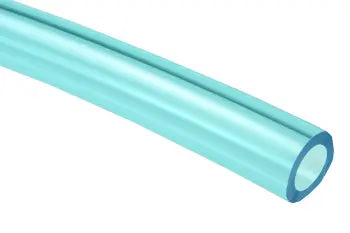

PT0815-100TB by Coilhose | Tubing | 8mm OD x 5mm ID | 1.5 mm Wall Thickness | Transparent Blue | Polyurethane | 100ft

Save $55.34

$138.35

$138.35 - $138.35

$138.35

$83.01

$83.01 - $83.01

$83.01

Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 8.0mm OD x 5.0mm ID

Specifications for Variant SKU: PT0815-100TB Coilhose
Hose Color(s):	Blue
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Metric Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 100ft Length	Part Number 500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0815-100K	PT0815-500K	Black	8.0mm x 5.0mm	1.5mm	190 PSI
PT0815-100Y	PT0815-500Y	Yellow
PT0815-100W	PT0815-500W	White
PT0815-100TC	PT0815-500TC	Transparent Clear
PT0815-100TB	PT0815-500TB	Transparent Blue
PT0815-100R	PT0815-500R	Red
PT0815-100G	PT0815-500G	Green
PT0815-100B	PT0815-500B	Blue

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
