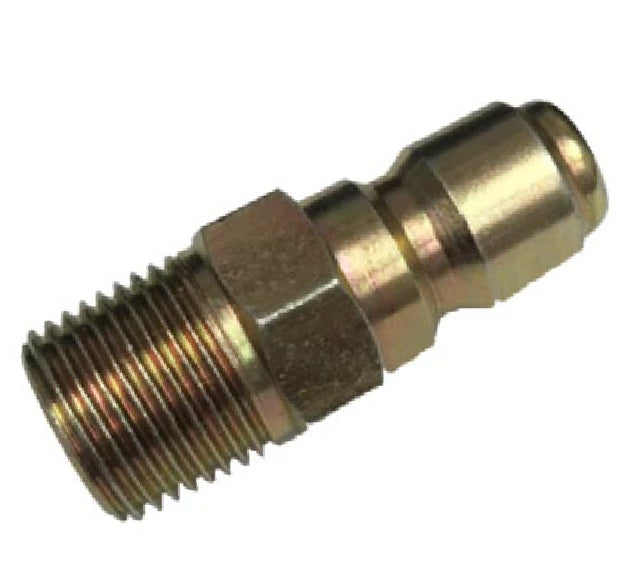

QC-PW06-M-04N-M by Couplamatic | Hydraulic Quick Coupler | PW Series | Pressure Wash | 1/4" Body Size x 1/4-18 | Male NPT | Plug | Brass

Save $1.48

$3.70

$3.70 - $3.70

$3.70

$2.22

$2.22 - $2.22

$2.22

Couplamatic Inc
Hydraulic Quick Couplers - PW, & PWSS Series Valveless Quick Connect Pressure Wash Couplers

Specifications for Variant SKU: QC-PW06-M-04N-M Couplamatic
Series:	PW Series
Shape (Orientation):	Straight

Features:
PW Series Couplers are made from brass (coupler) and carbon steel (nipple). The band on the coupler is made from stainless steel. 4000 PSI. PWSS Series Couplers are made from 303 stainless. 6000 PSI. They both accomodate high flow rates with minimal pressure drops. For non-hazardous fluids only. Zinc Plating
Applications:
Pressure Wash Carpet Cleaners Steam Washers Non Valved Applications


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	"A"Length	"B"Length	"C"Length
PW Series Brass & Steel Pressure Wash Couplers
QC-PW06-F-04N-M	1/4"	06	Female	1/4-18 NPT (Male)	4000 PSI	2.53"	1.68"	-
QC-PW06-M-04N-F	1/4"	06	Male	1/4-18 NPT (Female)	4000 PSI	1.97"	-	1.42"
QC-PW06-M-04N-M	1/4"	06	Male	1/4-18 NPT (Male)	4000 PSI	2.53"	-	1.60"
QC-PW10-F-06N-M	3/8"	10	Female	3/8-18 NPT (Male)	4000 PSI	2.69"	1.72"	-
PWSS Series Stainless Steel Pressure Wash Couplers
QC-PWSS06-F-04N-M	1/4"	06	Female	1/4-18 NPT (Male)	6000 PSI	2.58"	1.72"	-
QC-PWSS06-M-04N-F	1/4"	06	Male	1/4-18 NPT (Female)	6000 PSI	2.01"	-	1.44"
QC-PWSS06-M-04N-M	1/4"	06	Male	1/4-18 NPT (Male)	6000 PSI	2.58"	-	1.60"
QC-PWSS10-F-06N-M	3/8"	10	Female	3/8-18 NPT (Male)	6000 PSI	2.76"	1.79"	-
