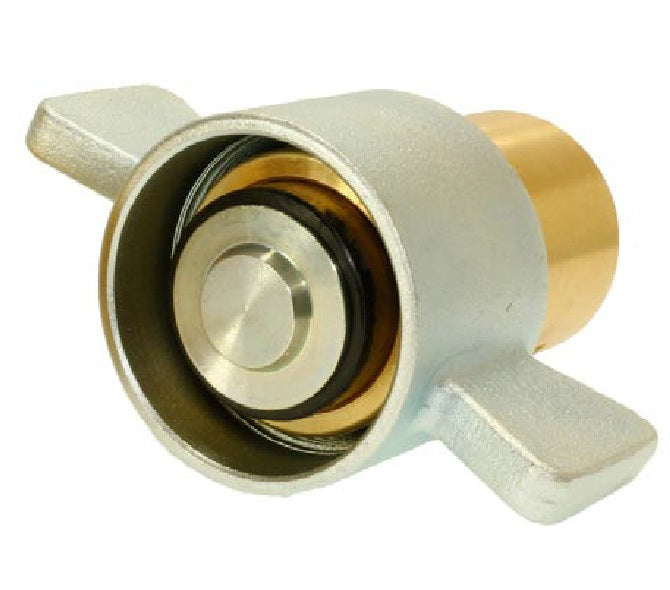

QC-WNG25-F-16N by Couplamatic | Hydraulic Quick Coupler | WNG Series | Screw to Connect | 1" Body Size x 1-11-1/2 NPT Thread Size Female | Brass with Zinc Plating | Wing Nut

Save $5.47 Save $5.47
Original price $54.68
Original price $54.68 - Original price $54.68
Original price $54.68
Current price $49.21
$49.21 - $49.21
Current price $49.21

Couplamatic Inc
Hydraulic Quick Couplers - WNG Series Brass Screw to Connect Couplers


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: QC-WNG25-F-16N Couplamatic
Series: WNG Series
Shape (Orientation): Straight
Features:
  • WNG Series Couplers are made with a brass body and nitrile seals.
  • They are designed for connection and disconnection by hand.
  • WNG Series can be connected with low residual pressure (up to 725 PSI or 50 bar).
  • Brass with Zinc Plating (Wing Nut)
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Trailers
  • Wet Line Kits
  • Oil and Gas Applications
Part Number Body
Size
Body
Size
(ISO)
Coupler
Gender
Thread
Size
Working
Pressure
Coupled
Burst
Female
Burst
Male
Burst
"A" Length "B" Length "C" Length
QC-WNG19-F-12N 3/4" 19 Female 3/4-14 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 5.3" 3.1" -
QC-WNG19-M-12N 3/4" 19 Male 3/4-14 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 5.3" - 3.2"
QC-WNG25-F-16N 1" 25 Female 1-11-1/2 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 6.1" 3.5" -
QC-WNG25-M-16N 1" 25 Male 1-11-1/2 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 6.1" - 3.8"
QC-WNG32-F-20N 1-1/4" 32 Female 1-1/4-11-1/2 NPT 2755 PSI 9425 PSI 8700 PSI 9425 PSI 6.4" 3.7" -
QC-WNG32-M-20N 1-1/4" 32 Male 1-1/4-11-1/2 NPT 2755 PSI 9425 PSI 8700 PSI 9425 PSI 6.4" - 3.9"
QC-WNG40-F-24N 1-1/2" 40 Female 1-1/2-11-1/2 NPT 2538 PSI 7613 PSI 6888 PSI 7613 PSI 7.0" 4.1" -
QC-WNG40-M-24N 1-1/2" 40 Male 1-1/2-11-1/2 NPT 2538 PSI 7613 PSI 6888 PSI 7613 PSI 7.0" - 4.0"
