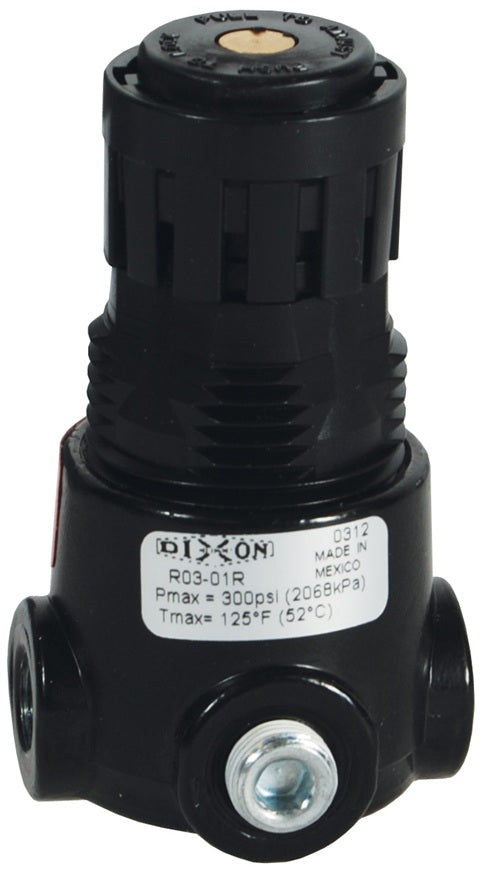

R03-02R Wilkerson by Dixon Valve | R03-Series | Miniature Regulator | without Gauge | 1/4" Size | 15 SCFM | 2-125 PSI Adjusting Range

Save $2.75

$32.70

$32.70 - $32.70

$32.70

$29.95

$29.95 - $29.95

$29.95

Dixon Valve
Wilkerson | R03-Series | Miniature Regulator

For air service only.

2-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R03-02R Dixon
Brand:	Wilkerson
Series:	R03-Series
Special Properties:	Mini/Micro Size

Features:
Balanced valve design. Self-relieving standard. Non-rising push/pull locking adjustment knob. Two 1/8" NPT gauge ports standard on models without gauge, one 1/8" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models supplied without a gauge use a GC620 gauge. Panel mount nuts sold separately.
Specifications:
Maximum operating conditions: 300 PSIG (20.17 bar) and 32°F to 125°F (0°C to 52°C). SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number with Gauge	Part Number without Gauge	Size	Flow (SCFM)
R03-01RG	R03-01R	1/8"	13 SCFM
R03-02RG	R03-02R	1/4"	15 SCFM
