R520-4x4 Couplamatic R5 Series Coupling - Inverted Male - 90° Bend - 3/16" Hose ID - 7/16x24 Thread Size

R520-4x4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 7/16x24 Thread Size Inverted Male | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $50.59

$126.47

$126.47 - $126.47

$126.47

$75.88

$75.88 - $75.88

$75.88

Couplamatic Systems Inc.
R5 Series - Inverted Male - 90° Bend

Package Quantity: 10 EA

Specifications for Variant SKU: R520-4x4 Couplamatic \| 10 \|
Series:	R5 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male Inverted Flare, 3/16in Hose Barb
Material(s):	Steel
Compatible with the following Series:	58MBA Series \| HTR5 Hi-Temp R5 Series

R5 Series — Textile Cover Hose

R520 R5 Series — 90° Elbow

R520 is the 90° Elbow configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.

1

What are the main product features?

The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
Trivalent Zinc Plating
Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".

2

Which sizes are available?

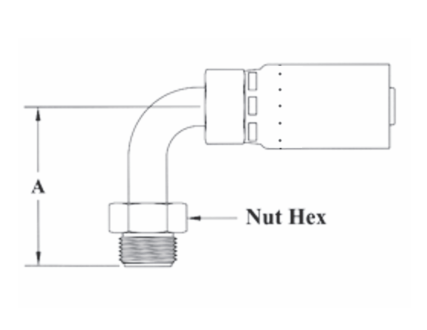

Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex
R520-4x4	3/16"	7/16x24"	1/4"	1.23"	7/16"
R520-5x5	1/4"	1/2x20"	5/16"	1.38"	1/2"
R520-6x6	5/16"	5/8x18"	3/8"	1.63"	5/8"
R520-8x8	13/32"	3/4x18"	1/2"	2.20"	3/4"
