R525-20X20 Couplamatic R5 Series Coupling - JIC/SAE Dual Seat - 45° Female Swivel - 1-1/8" Hose ID - 1-5/8x12 Thread Size

R525-20X20 by Couplamatic | R5 Series Coupling | 1-1/8" Hose ID x 1-5/8x12 Thread Size JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 5

Save $24.75 Save $24.75
$247.47
$247.47 - $247.47
$247.47
$222.72
$222.72 - $222.72
$222.72

Couplamatic Systems Inc.
R5 Series - JIC/SAE Dual Seat - 45° Female Swivel

Package Quantity: 5 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: R525-20X20 Couplamatic | 5 |
Series: R5 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/8in Hose Barb, 1-1/4in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

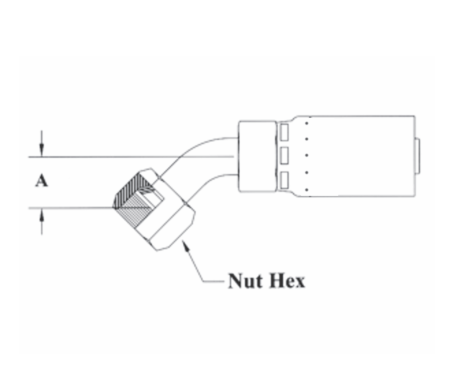

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R525-4X4 3/16" 1/4" 7/16x20 0.47" 9/16" 06904E-684
R525-5X5 1/4" 5/16" 1/2x20 0.53" 5/8" 06905E-685
R525-6X6* 5/16" 3/8" 9/16x18 0.59" 11/16" 06906E-686
R525-8X8 13/32" 1/2" 3/4x16 0.71" 7/8" 06908E-688
R525-10X10 1/2" 5/8" 7/8x14 0.68" 1" 06910E-690
R525-12X12* 5/8" 3/4" 1-1/16x12 1.12" 1-1/4" 06912E-692
R525-16X16* 7/8" 1" 1-5/16x12 1.15" 1-1/2" 06916E-696
R525-20X20 1-1/8" 1-1/4" 1-5/8x12 1.69" 2" -

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
