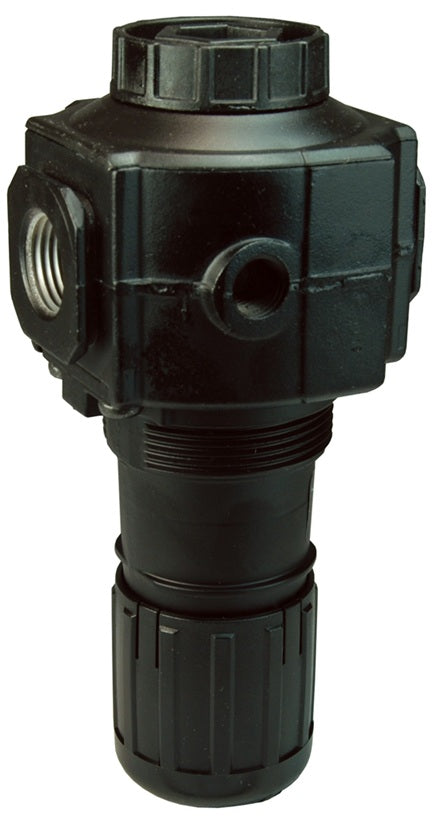

R74G-3R by Dixon Valve | R74G Series 1 | Standard Regulator | 3/8" Port Size | 208 SCFM | without Gauge | 5-150 PSI Pressure Range

Save $9.26

$121.83

$121.83 - $121.83

$121.83

$112.57

$112.57 - $112.57

$112.57

Dixon Valve
R74G Series 1 | Standard Regulator

Pressure range: 5-150 PSI

In-line or modular installation.

For air service only.

Quantity

Specifications for Variant SKU: R74G-3R Dixon
Series:	R74G Series 1

Features:
In-line or modular installation. Relieving type. Two full flow 1/4" NPT gauge ports. RG models supplied with GC230 gauge.
Specifications:
Pressure range: 5-150 PSI. Inlet pressure: 300 PSI. Maximum temperature: 175°F (80°C). SCFM ratings at 150 PSIG inlet pressure.
Dimensions:

With Gauge Part Number	Without Gauge Part Number	Port Size	Flow (SCFM)
R74G-3RG	R74G-3R	3/8"	208 SCFM
R74G-4RG	R74G-4R	1/2"	220 SCFM
R74G-6RG	R74G-6R	3/4"	220 SCFM
