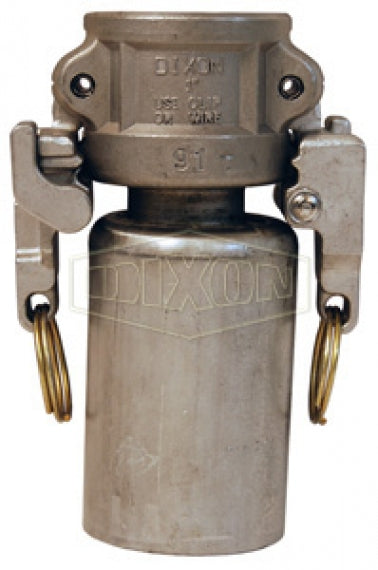

RC100EZ-70 by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 1" Size | Hose OD Range: from 1-36/64" to 1-44/64" | with Swaged Ferrule | 316 Stainless Steel

$81.89

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank | with Swaged Ferrule

Developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: RC100EZ-70 Dixon
Brand:	EZ Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1in Female Cam & Groove, 1in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Nitrile

Features:
Provides a permanently attached cam and groove fitting when superior coupling retention is required. In testing tank transport hoses from a wide variety of manufacturers, the swaged Boss-Lock fitting proved itself to be the clear winner in overall performance.
Construction:
Seal: Nitrile Rubber
Safety Notes:
Special equipment is required for installation. Under no circumstances should cam and groove couplings be used for compressed air or steam service!. Dixon stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products. Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Contact Dixon for swage recommendations.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

316 Stainless Steel Part Number	Size	Hose OD Range		Max. Operating Pressure
316 Stainless Steel Part Number	Size	From	To	Max. Operating Pressure
RC075EZ-70	3/4"	1-6/64"	1-22/64"	250 PSI
RC100EZ-20	1"	1-29/64"	1-35/64"	250 PSI
RC100EZ-70	1"	1-36/64"	1-44/64"	-
