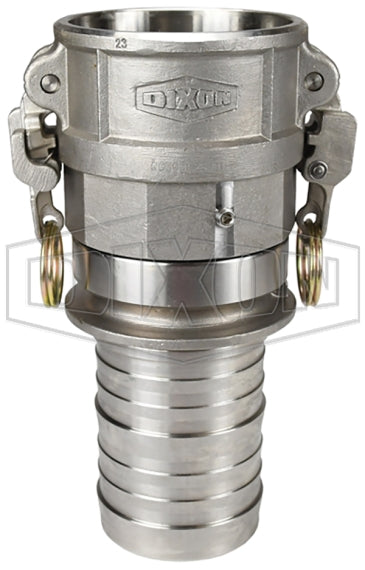

RC400EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type C | 4" Coupler x 4" Hose Shank | 316 Stainless Steel

RC400EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type C | 4" Coupler x 4" Hose Shank | 316 Stainless Steel

Save $241.43 Save $241.43
$603.58
$603.58 - $603.58
$603.58
$362.15
$362.15 - $362.15
$362.15

Dixon Valve
Swivel Coupling Cam & Groove | Type C Coupler | Coupler x Hose Shank

Live swivel is capable of 360-degree rotation under pressure.
Specifications for Variant SKU: RC400EZSWIV Dixon
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Features:
  • Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications.
  • Couplers inculde EZ Boss-Lock cam arms.
  • Gasket: nitrile rubber.
Note:
  • Hose shanks are suitable for use with King Crimp sleeves and ferrules.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
AC200EZSWIV RC200EZSWIV 2" 250 PSI
AC300EZSWIV RC300EZSWIV 3" 125 PSI
150 PSI with King Crimp ferrule system
AC400EZSWIV RC400EZSWIV 4" 100 PSI
150 PSI with King Crimp ferrule system
