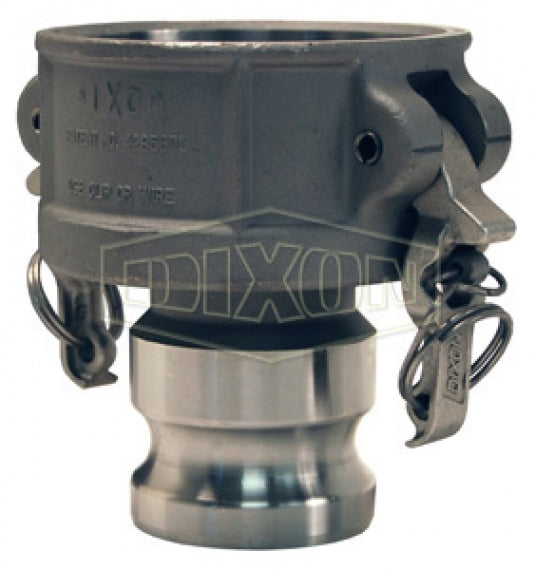

RDA4030BL by Dixon Valve | Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 4" Coupler x 3" Adapter | 316 Stainless Steel

Name: RDA4030BL by Dixon Valve | Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 4" Coupler x 3" Adapter | 316 Stainless Steel
Brand: Dixon
SKU: RDA4030BL Dixon
Price: 414.21 USD
Availability: InStock

Save $276.14

$690.35

$690.35 - $690.35

$690.35

$414.21

$414.21 - $414.21

$414.21

Dixon Valve
Boss-Lock Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.

Specifications for Variant SKU: RDA4030BL Dixon
Brand:	Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 3in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard. All Boss-Lock couplers are supplied with pull-ring safety clips.
Safety Notes:
The 8" coupler only interchanges with 8" Boss-Lock couplings. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size Coupler x Adapter	Max. Operating Pressure
ADA2030*	RDA2030BL*	2" x 3"	125 PSI
ADA2520*	-	2-1/2" x 2"	150 PSI
ADA2530*	-	2-1/2" x 3"	125 PSI
ADA3020	RDA3020BL	3" x 2"	125 PSI
ADA3040*	RDA3040BL*	3" x 4"	100 PSI
ADA4020*	RDA4020BL*	4" x 2"	100 PSI
ADA4030	RDA4030BL	4" x 3"	100 PSI
ADA6040*	-	6" x 4"	75 PSI
ADA8060*	-	8" x 6"	50 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
