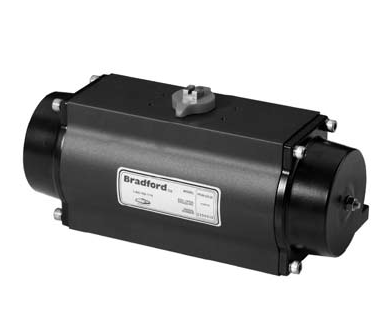

RP-BA-045-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 450 Series - ISO5211 F05 / F07

RP-BA-045-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 450 Series - ISO5211 F05 / F07

Save $272.21 Save $272.21
$680.52
$680.52 - $680.52
$680.52
$408.31
$408.31 - $408.31
$408.31

Dixon Sanitary Fittings
RP-BA Series Spring Return Aluminum Rack and Pinion Actuator
Specifications for Variant SKU: RP-BA-045-SR Dixon
Features and Benefits:
  • Body: extruded hard anodized aluminum alloy provides wear and corrosion resistance and reduced friction.
  • Heavy duty springs: high tensile steel springs with retainer and guide for safe and easy assembly.
  • Pistons: die-cast aluminum alloy fitted with nylon bushing guides and Buna-N seals.
  • End caps: epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environments.
  • Pinion: Electroless nickel plated carbon steel for maximum corrosion and wear resistance.
  • Rotation adjustment: A full ±5° of travel adjustment in the open and closed positions, standard on all sizes.
  • Solenoid interface: International NAMUR solenoid mounting interface is standard on all units.
  • Indicator: A high visibility polyethylene indicator. Open/Close indication is standard on all models.
  • Tested to 1 million cycles
Specifications:
  • Twin rack & pinion design
  • Female double square output shaft
  • ISO 5211 bolt patterns
  • Piston and pinion lubrication: Shell Darina R2
  • Range of rotation adjustment: 80° to 100°
  • Operating media: dry or lubricated non-corrosive gas
  • Operating pressure: 40 to 120 PSI
  • Maximum pressure rating: 150 PSI
  • Temperature range: -4°F to 200°F
  • Size range: 40 in. lb. 16,500 in. lb.
Cycle Times:
  • Overall cycle time performance will vary greatly for each unit. Cycle times are dependant on air supply, valve torque, line pressure, temperature and media.
Dimensions:
Part Number Weight Volume ISO 5211
cm3 in3
RP-BA-025-SR 4.21 lbs. 170 10.37 F04
RP-BA-025-SR05 4.21 lbs. 170 10.37 F05
RP-BA-045-SR 5.20 lbs. 324 19.77 F05 / F07
RP-BA-101-SR 11.45 lbs. 708 43.20 F05 / F07
RP-BA-225-SR 22.50 lbs. 1573 95.99 F07 / F10
RP-BA-365-SR 40.55 lbs. 26.73 163.12 F10 / F12
RP-BA-500-SR 57.80 lbs. 3018 184.17 F10 / F12
