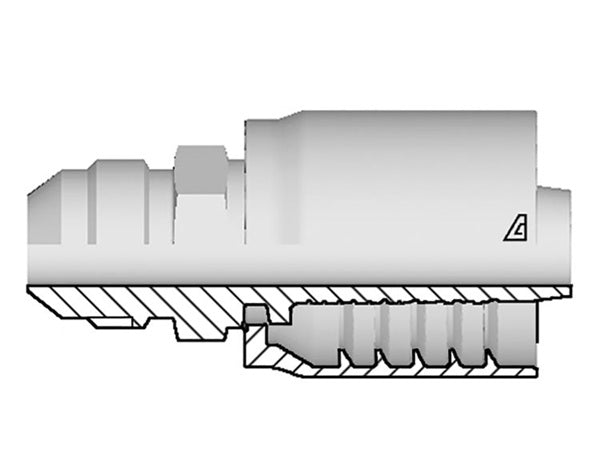

S-0808-MJIC Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male JIC x -08 Hose ID | Steel

Name: S-0808-MJIC Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male JIC x -08 Hose ID | Steel
Brand: Kuriyama
SKU: S-0808-MJIC Kuriyama
Price: 28.26 USD
Availability: InStock

Save $11.30

$39.56

$39.56 - $39.56

$39.56

$28.26

$28.26 - $28.26

$28.26

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male JIC x Hose Barb

Specifications for Variant SKU: S-0808-MJIC Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
S-0606-MJIC	-06	3/8"	9.5mm	-06	9/16-18	27.0mm	17mm	0.18 lbs
S-0808-MJIC	-08	1/2"	12.7mm	-08	3/4-16	30.6mm	19mm	0.25 lbs
S-1010-MJIC	-10	5/8"	15.9mm	-10	7/8-14	35.3mm	24mm	0.40 lbs
S-1212-MJIC	-12	3/4"	19.1mm	-12	1 1/16-12	39.1mm	27mm	0.62 lbs
S-1616-MJIC	-16	1"	25.4mm	-16	1 5/16-12	46.1mm	36mm	1.06 lbs
S-2020-MJIC	-20	1-1/4"	31.8mm	-20	1 5/8-12	48.5mm	46mm	1.68 lbs
S-3232-MJIC	-32	2"	50.8mm	-32	2 1/2-12	55.4mm	70mm	3.50 lbs
