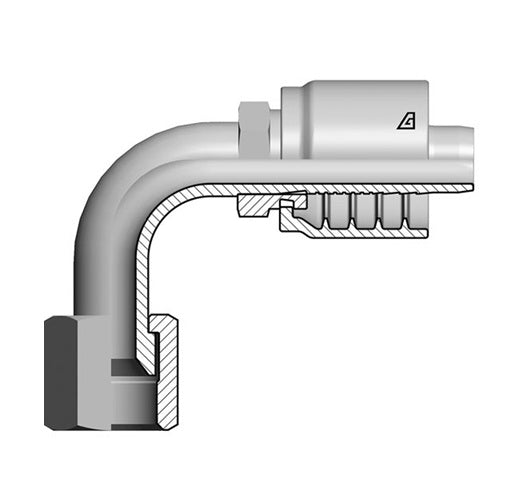

S-1012-FJ9S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Short Drop | -12 Female 37° JIC Swivel x -10 Hose ID | Steel

S-1012-FJ9S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Short Drop | -12 Female 37° JIC Swivel x -10 Hose ID | Steel

Save $16.22 Save $16.22
$56.78
$56.78 - $56.78
$56.78
$40.56
$40.56 - $40.56
$40.56

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Short Drop | Female 37° JIC Swivel x Hose Barb
Specifications for Variant SKU: S-1012-FJ9S Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D Drop Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm in CH
mm		 CH1
mm		 lbs/each
S-0606-FJ9S -06 3/8" 9.5mm -06 9/16-18 43.0mm 25mm 17mm 19mm 0.27 lbs
S-0608-FJ9S -06 3/8" 9.5mm -08 3/4-16 32.5mm 28mm - 25mm 0.29 lbs
S-0808-FJ9S -08 1/2" 12.7mm -08 3/4-16 48.0mm 29mm 19mm 22mm 0.36 lbs
S-0810-FJ9S -08 1/2" 12.7mm -10 7/8-14 38.0mm 32mm - 27mm 0.41 lbs
S-0812-FJ9S -08 1/2" 12.7mm -12 1-1/16-20 37.3mm 46mm - 32mm 0.52 lbs
S-1010-FJ9S -10 5/8" 15.9mm -10 7/8-14 43.0mm 37mm 24mm 27mm 0.62 lbs
S-1012-FJ9S -10 5/8" 15.9mm -10 1-1/16-20 48.0mm 48mm - 32mm 0.64 lbs
S-1212-FJ9S -12 3/4" 19.1mm -12 1-1/16-12 64.0mm 48mm 27mm 32mm 0.95 lbs
S-1216-FJ9S -12 3/4" 19.1mm -16 1-5/16-12 53.6mm 53mm - 38mm 0.96 lbs
S-1616-FJ9S -16 1" 25.4mm -16 1-5/16-12 87.0mm 56mm 36mm 41mm 1.74 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
