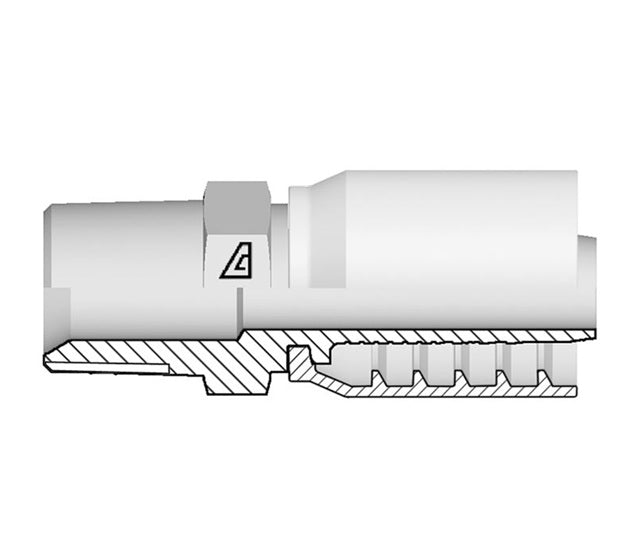

S-3232-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Male NPTF 60° Seat x -32 Hose ID | Steel

S-3232-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Male NPTF 60° Seat x -32 Hose ID | Steel

Save $53.86 Save $53.86
$188.50
$188.50 - $188.50
$188.50
$134.64
$134.64 - $134.64
$134.64

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male NPTF 60° Seat x Hose Barb
Specifications for Variant SKU: S-3232-MNPT Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 2in Male NPTF, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. CH1 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
S-1212-MNPT -12 3/4" 19.1mm -12 3/4-14 35.5mm 27mm 0.60 lbs
S-1616-MNPT -16 1" 25.4mm -16 1-11-1/2 44.4mm 36mm 1.06 lbs
S-2020-MNPT -20 1-1/4" 31.8mm -20 1-1/4-11-1/2 50.9mm 46mm 1.68 lbs
S-2424-MNPT -24 1-1/2" 38.1mm -24 1-1/2-11-1/2 54.5mm 50mm 2.37 lbs
S-3232-MNPT -32 2" 50.8mm -32 2-11-1/2 53.7mm 65mm 4.22 lbs
