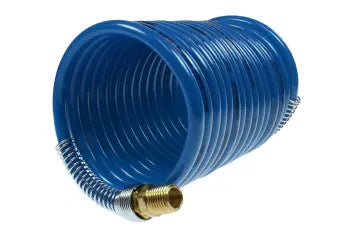

S38-174B by Coilhose | Stowaway™ Heavy Duty Coiled Air Hose | 3/8" Hose ID | 1/4" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 17ft

S38-174B by Coilhose | Stowaway™ Heavy Duty Coiled Air Hose | 3/8" Hose ID | 1/4" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 17ft

Save $30.91 Save $30.91
$77.28
$77.28 - $77.28
$77.28
$46.37
$46.37 - $46.37
$46.37
Coilhose Pneumatics - Coiled Hose - Stowaway™ Heavy Duty Nylon Air Hose
Specifications for Variant SKU: S38-174B Coilhose
Brand: Stowaway
Hose Color(s): Blue
Material(s): Nylon
Special Properties: Heavy Duty, Swivel
Overview:
  • Stowaway Heavy Duty Nylon Air Hose features extra heavy wall thickness to meet the requirements of the most demanding applications. Heavy walls provide additional protection against oil, grease, gasoline and abrasion as well as increased working pressure. Available in Blue.
Applications:
  • Air Hoists, Construction Sites, Heavy Duty Tools, Chippers, Cement Plants, Truck Maintenance & Repairs, Mining Operations and Moving Cylinders.

Specifications:
Model Tube I.D Tube O.D WallThickness WPat 70° F NominalCoil O.D. RetractedLength RecommendedWorkingLength NominalWeight25' StandardColor
S14-25 1/4" .309/.315 .038+/-.003 220 PSI 3-1/2" 10-1/2" 22' 13 oz. Blue
S38-25 3/8" .495/.505 .062+/-.004 230 PSI 5-5/8" 10-1/4" 21' 20 oz. Blue

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
S14-12 1/4" 12ft 1/4" 2 Rigid MPT Blue 4.7" 9.6ft
S14-12A 1/4" 12ft 1/4" 1 Rigid / 1 Swivel MPT Blue 4.7" 9.6ft
S14-12B 1/4" 12ft 1/4" 2 Swivel MPT Blue 4.7" 9.6ft
S14-17 1/4" 17ft 1/4" 2 Rigid MPT Blue 6.6" 13.6ft
S14-17A 1/4" 17ft 1/4" 1 Rigid / 1 Swivel MPT Blue 6.6" 13.6ft
S14-17B 1/4" 17ft 1/4" 2 Swivel MPT Blue 6.6" 13.6ft
S14-25 1/4" 25ft 1/4" 2 Rigid MPT Blue 9.7" 20ft
S14-25A 1/4" 25ft 1/4" 1 Rigid / 1 Swivel MPT Blue 9.7" 20ft
S14-25B 1/4" 25ft 1/4" 2 Swivel MPT Blue 9.7" 20ft
S14-50 1/4" 50ft 1/4" 2 Rigid MPT Blue 19.3" 40ft
S14-50A 1/4" 50ft 1/4" 1 Rigid / 1 Swivel MPT Blue 19.3" 40ft
S14-50B 1/4" 50ft 1/4" 2 Swivel MPT Blue 19.3" 40ft

S38-12 3/8" 12ft 3/8" 2 Rigid MPT Blue 5" 9.6ft
S38-12A 3/8" 12ft 3/8" 1 Rigid / 1 Swivel MPT Blue 5" 9.6ft
S38-12B 3/8" 12ft 3/8" 2 Swivel MPT Blue 5" 9.6ft
S38-124 3/8" 12ft 1/4" 2 Rigid MPT Blue 5" 9.6ft
S38-124A 3/8" 12ft 1/4" 1 Rigid / 1 Swivel MPT Blue 5" 9.6ft
S38-124B 3/8" 12ft 1/4" 2 Swivel MPT Blue 5" 9.6ft
S38-17 3/8" 17ft 3/8" 2 Rigid MPT Blue 7" 13.6ft
S38-17A 3/8" 17ft 3/8" 1 Rigid / 1 Swivel MPT Blue 7" 13.6ft
S38-17B 3/8" 17ft 3/8" 2 Swivel MPT Blue 7" 13.6ft
S38-174 3/8" 17ft 1/4" 2 Rigid MPT Blue 7" 13.6ft
S38-174A 3/8" 17ft 1/4" 1 Rigid / 1 Swivel MPT Blue 7" 13.6ft
S38-174B 3/8" 17ft 1/4" 2 Swivel MPT Blue 7" 13.6ft
S38-25 3/8" 25ft 3/8" 2 Rigid MPT Blue 10" 20ft
S38-25A 3/8" 25ft 3/8" 1 Rigid / 1 Swivel MPT Blue 10" 20ft
S38-25B 3/8" 25ft 3/8" 2 Swivel MPT Blue 10" 20ft
S38-254 3/8" 25ft 1/4" 2 Rigid MPT Blue 10" 20ft
S38-254A 3/8" 25ft 1/4" 1 Rigid / 1 Swivel MPT Blue 10" 20ft
S38-254B 3/8" 25ft 1/4" 2 Swivel MPT Blue 10" 20ft
S38-50 3/8" 50ft 3/8" 2 Rigid MPT Blue 19.5" 40ft
S38-50A 3/8" 50ft 3/8" 1 Rigid / 1 Swivel MPT Blue 19.5" 40ft
S38-50B 3/8" 50ft 3/8" 2 Swivel MPT Blue 19.5" 40ft
S38-504 3/8" 50ft 1/4" 2 Rigid MPT Blue 19.5" 40ft
S38-504A 3/8" 50ft 1/4" 1 Rigid / 1 Swivel MPT Blue 19.5" 40ft
S38-504B 3/8" 50ft 1/4" 2 Swivel MPT Blue 19.5" 40ft

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
