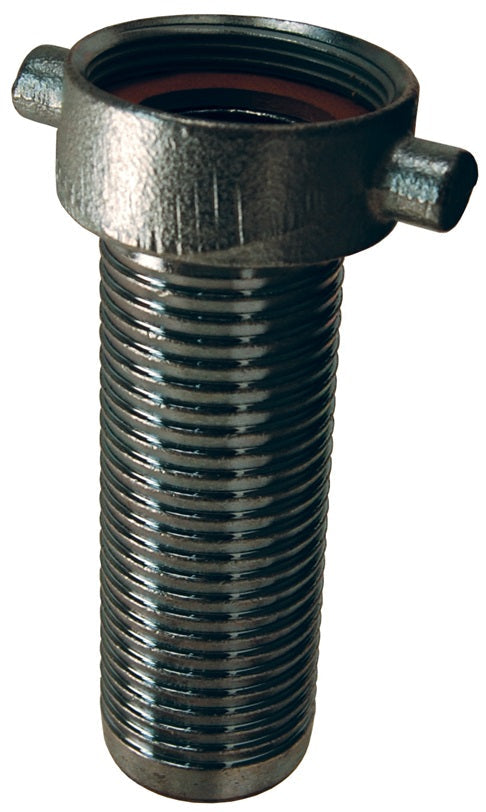

SDMP15 by Dixon Valve | Super King Long Shank Hose Coupling | Female Fitting | 1-1/4" Female NPSM x 1-1/4" Hose ID | Plated Steel Shank | Iron Pin Lug Nut

Save $3.38

$40.05

$40.05 - $40.05

$40.05

$36.67

$36.67 - $36.67

$36.67

Dixon Valve
Super King Long Shank Hose Coupling | Female Fitting | Female NPSM x Hose Barb

For liquid transfer where steel and stainless are preferred.

Quantity

Specifications for Variant SKU: SDMP15 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Female NPSM
Material(s):	Plated Steel, Iron
Seal Material(s):	Leather
Special Properties:	Long

Features:
Will accept 3 band clamps. Pin lug nut.

Plated Steel Shank with Brass Pin Lug Nut Part Number*	Plated Steel Shank with Iron Pin Lug Nut Part Number*	316 Stainless Shank with Iron Pin Lug Nut Part Number*	316 Stainless Shank with Stainless Hex Nut Part Number**	Size	Shank Length
SD15	SDMP15	-	-	1-1/4"	4-1/8"
SD20	SDMP20	-	RSHR20	1-1/2"	4-1/8"
SD25	SDMP25	RSDM25	RSDR25	2"	5"
SD30	SDMP30	-	-	2-1/2"	5"
SD35	SDMP35	RSDM35	-	3"	5"
SD40	SDMP40	-	-	4"	5"

* KLW leather gaskets standard
** PTFE gaskets standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
