SFK-12 Couplamatic VARI-CRIMP Coupling - Code 61 Split Flange Kit - 3/4" Flange Size - Complete Kit

SFK-12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Split Flange Size | Code 61 | Complete Kit | Trivalent Zinc Plating

Save $5.88

$14.70

$14.70 - $14.70

$14.70

$8.82

$8.82 - $8.82

$8.82

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange Kits

Specifications for Variant SKU: SFK-12 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

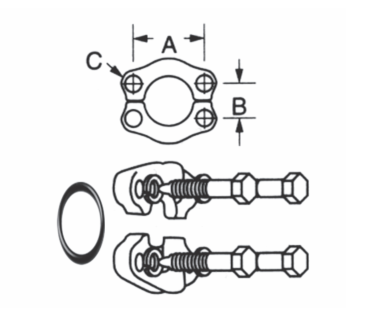

Part Number Complete Kit	Part Number O-Ring	Flange Size	A Inches	A Inches	A Inches
SFK-8	8252	1/2"	1.50"	0.69"	11/32"
SFK-12	12252	3/4"	1.88"	0.88"	13/32"
SFK-16	16252	1"	2.06"	1.03"	13/32"
SFK-20	20252	1-1/4"	2.31"	1.19"	15/32"
SFK-24	24252	1-1/2"	2.75"	1.41"	17/32"
SFK-32	32252	2"	3.06"	1.69"	17/32"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
