SFK-32 Couplamatic GW Series Coupling - Code 61 Split Flange Kits - 2" Flange Size - Complete Kit

SFK-32 by Couplamatic | GW Series Coupling | 2" Split Flange Size | Code 61 | Complete Kit

Save $11.61 Save $11.61
$29.03
$29.03 - $29.03
$29.03
$17.42
$17.42 - $17.42
$17.42

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange Kits
Specifications for Variant SKU: SFK-32 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 2in Code 61 Flange
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

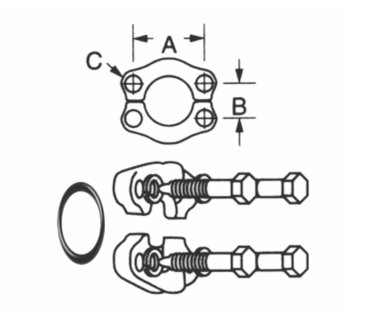

Part Number Complete Kit Part Number O-Ring Flange Size A Inches A Inches A Inches
SFK-8 8252 1/2" 1.50" 0.69" 11/32"
SFK-12 12252 3/4" 1.88" 0.88" 13/32"
SFK-16 16252 1" 2.06" 1.03" 13/32"
SFK-20 20252 1-1/4" 2.31" 1.19" 15/32"
SFK-24 24252 1-1/2" 2.75" 1.41" 17/32"
SFK-32 32252 2" 3.06" 1.69" 17/32"
