SFK62-12 Couplamatic GW Series Coupling - Code 62 Split Flange Kits - 3/4" Flange Size - Complete Kit

SFK62-12 by Couplamatic | GW Series Coupling | 3/4" Split Flange Size | Code 62 | Complete Kit

Save $10.89 Save $10.89
$27.22
$27.22 - $27.22
$27.22
$16.33
$16.33 - $16.33
$16.33

Couplamatic Systems Inc.
GW Series - Code 62 Split Flange Kits
Specifications for Variant SKU: SFK62-12 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Code 62 Flange
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

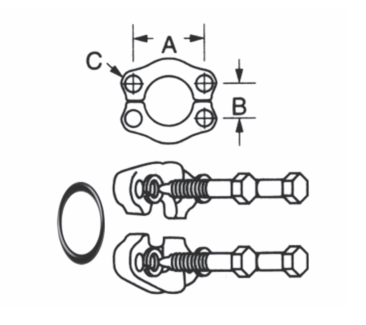

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFK62-12 12252 3/4" 2.00" 0.94" 13/32"
SFK62-16 16252 1" 2.25" 1.09" 15/32"
SFK62-20 20252 1-1/4" 2.63" 1.25" 17/32"
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
