SFKHD-24 Couplamatic Grip Crimp 6GC Series Coupling - Extra Heavy Duty Split Flange Kits - 1-1/2" Flange Size - Complete Kit

SFKHD-24 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/2" Extra Heavy Duty Split Flange Size | Complete Kit

Save $42.75 Save $42.75
$106.87
$106.87 - $106.87
$106.87
$64.12
$64.12 - $64.12
$64.12

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Extra Heavy Duty Split Flange Kits
Specifications for Variant SKU: SFKHD-24 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Caterpillar Flange
Material(s): Steel
Split Flange Kit — Complete

SFKHD Split Flange Kit — Complete Kit

SFKHD is the Complete Kit configuration of the Split Flange Kit system, terminating split flange connections.

1

What are the main product features?
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • Complete kit — flange halves, bolts and O-ring supplied together.
  • Everything needed for one connection — no separate hardware to source.
  • Matched to the flange code — order the kit that matches the flange head on the coupling.
2

Which sizes are available?
Complete Kit
Part Number		 D-Ring

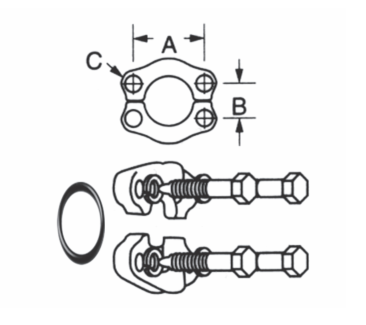

Part Number		 Flange Size AInches BInches CInches
SFKHD-12 D12 3/4" 2.00" .94" 13/32"
SFKHD-16 D16 1" 2.25" 1.09 15/32"
SFKHD-20 D20 1-1/4" 2.63" 1.25" 17/32"
SFKHD-24 D24 1-1/2" 3.12" 1.44" 21/32"
SFKHD-32 D32 2" 3.81" 1.75" 25/32"
