Kuriyama

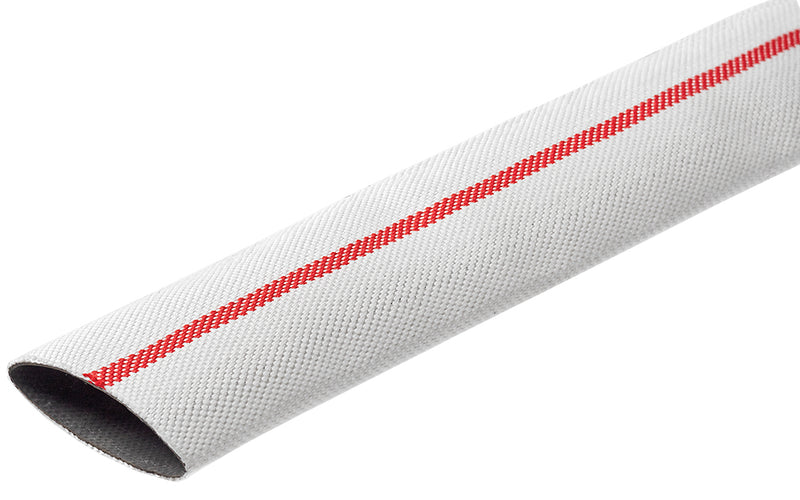

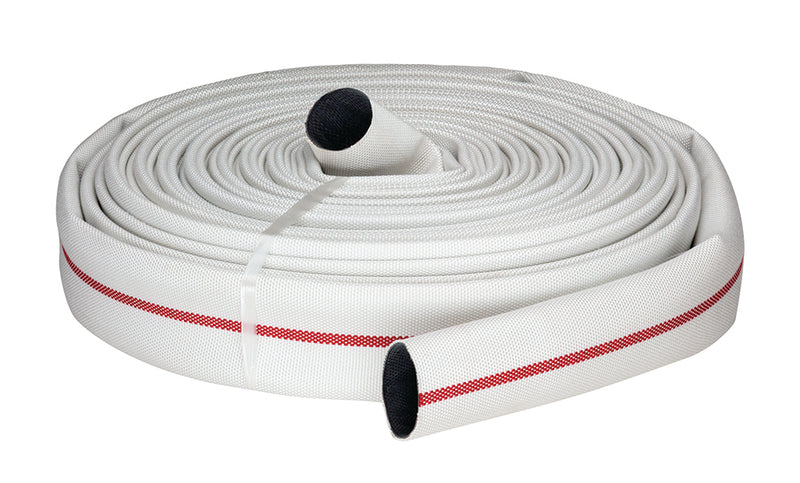

SJMD Series | Single Jacket Contractor Grade Layflat Hose

Ideal for construction and industrial use.

Suited for pump discharge, plant clean-up, and washdown applications on ships and in factories.

Package Quantity: 50 Foot

Specifications for Variant SKU: SJMD300X50 Kuriyama \| 50 \|
Series:	SJMD Series
Hose Color(s):	White/Off-White
Internal Diameter:	3.150in
Tubing Construction:	Natural Rubber
Cover Construction:	Polyester Textile Braid

Other Features:
Applications:	Construction pumps. Plant clean-up. Pump water discharge. Wash down - ships/factories.
Construction:	Single or double jacket with 100% polyester yarn. Water and mildew resistant cover, will not rot, even if the hose is stored wet.
Service Temperature Range:	-25°F (-31°C) to +185°F (+85°C)
Versatile Natural Rubber Tube - Exhibits a good combination of strength and extreme flexibility for ease-of-use. Wide Service Temperature Range - Hose may be used in a wide range of service temperature ranges from -25°F to +185°F. Double and Single Jacket Options - Available with a double jacket for additional external abrasion resistance. Identification Stripe - Red stripe indicates single jacket version, blue stripe indicates double jacket version. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Storage/Shipping Carton - Hoses are individually packaged in cartons for ease of handling and shipping.

Part Number 50ft	Part Number 100ft	Size		Hose ID		Working Pressure (PSI)	Burst Pressure	Coupling Bowl Size
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	at 68°F	at 68°F	(in)
SJMD150X50	SJMD150X100	1-1/2"	38.1mm	1.614"	41.0mm	150 PSI	450 PSI	1-11/16"
SJMD200X50	SJMD200X100	2"	50.8mm	2.126"	54.0mm	150 PSI	450 PSI	2-1/4"
SJMD250X50	SJMD250X100	2-1/2"	63.5mm	2.638"	67.0mm	150 PSI	450 PSI	2-3/4"
SJMD300X50	SJMD300X100	3"	76.2mm	3.150"	80.0mm	150 PSI	450 PSI	3-1/4
SJMD400X50	SJMD400X100	4"	101.6mm	4.055"	103.0mm	150 PSI	450 PSI	4-9/32
-	DJMD150X100	1-1/2"	38.1mm	1.575"	40.0mm	200 PSI	600 PSI	1-13/16
-	DJMD250X100	2-1/2"	63.5mm	2.598"	66.0mm	200 PSI	600 PSI	2-13/16
