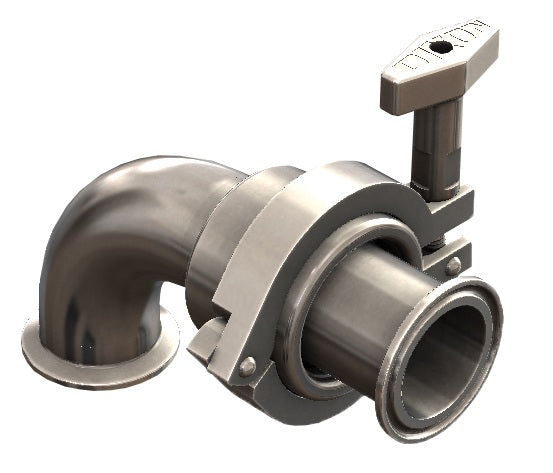

SJSS200ECC130 Dixon Valve SJSS Series Sanitary Swivel - 2" - Style 30 - Clamp Ends - EPDM - 316L Stainless Steel

Save $78.69 Save $78.69
Original price $708.24
Original price $708.24 - Original price $708.24
Original price $708.24
Current price $629.55
$629.55 - $629.55
Current price $629.55

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 30 - Clamp Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SJSS200ECC130 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100ECC130 1" 500 PSI @ 70°F
300 PSI @ 250°F
1.6694 SJSS-REPAR-E100
SJSS150ECC130 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F
2.1118 SJSS-REPAR-E150
SJSS200ECC130 2" 500 PSI @ 70°F
300 PSI @ 250°F
2.7986 SJSS-REPAR-E200
SJSS250ECC130 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F
3.9113 SJSS-REPAR-E250
SJSS300ECC130 3" 500 PSI @ 70°F
300 PSI @ 250°F
5.8526 SJSS-REPAR-E300
SJSS400ECC130 4" - - SJSS-REPAR-E400
