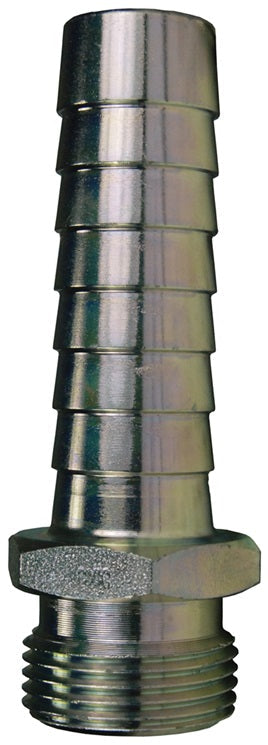

SLS317 by Dixon Valve | Long Shank Fitting | Male Coupling | 3/4" Male GHT x 3/8" Hose ID | Plated Steel

SLS317 by Dixon Valve | Long Shank Fitting | Male Coupling | 3/4" Male GHT x 3/8" Hose ID | Plated Steel

Save $1.75 Save $1.75
$20.76
$20.76 - $20.76
$20.76
$19.01
$19.01 - $19.01
$19.01

Dixon Valve
Long Shank Fitting | Male Coupling
Specifications for Variant SKU: SLS317 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/4in Male GHT
Material(s): Plated Steel
Features:
  • Extended male GHT - deeper thread.
  • Brass Female couplings include 5911212W SBR washer.
  • Plated Steel female couplings include KRW5 washer.
Materials:
  • For Lead-Free Brass Fittings ONLY: NSF ®/ANSI 61 certified lead-free brass <=0.25% lead, Alloy C2745 and NSF ®/ANSI 61 certified 5911212WEPDM washer included with female coupling.
Complete Coupling
Brass Plated Steel Hose I.D. Threads
Part Number Previous
Part Number
- - SLS307 3/8" 3/4" Male GHT x 3/4" Female GHT
5950808K BLS407 SLS407 1/2" 3/4" Male GHT x 3/4" Female GHT
5951010K BLS507 SLS507 5/8" 3/4" Male GHT x 3/4" Female GHT
5951212K BLS607 SLS607 3/4" 3/4" Male GHT x 3/4" Female GHT
Female Fitting
Brass Plated Steel Lead-Free Brass
Part Number		 Hose I.D. Threads
Part Number Previous
Part Number
- - SLS347 - 3/8" 3/4" Female GHT
5940812C BLS447 SLS447 - 1/2" 3/4" Female GHT
5941012C BLS547 SLS547 - 5/8" 3/4" Female GHT
5941212C BLS647 SLS647 5941212CLF 3/4" 3/4" Female GHT
Male Fitting
Brass Plated Steel Lead-Free Brass
Part Number		 Hose I.D. Threads
Part Number Previous
Part Number
- - SLS317 - 3/8" 3/4" Male GHT
5930812C BLS417 SLS417 - 1/2" 3/4" Male GHT
5931012C BLS517 SLS517 - 5/8" 3/4" Male GHT
5931212C BLS617 SLS617 5931212CLF 3/4" 3/4" Male GHT
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
