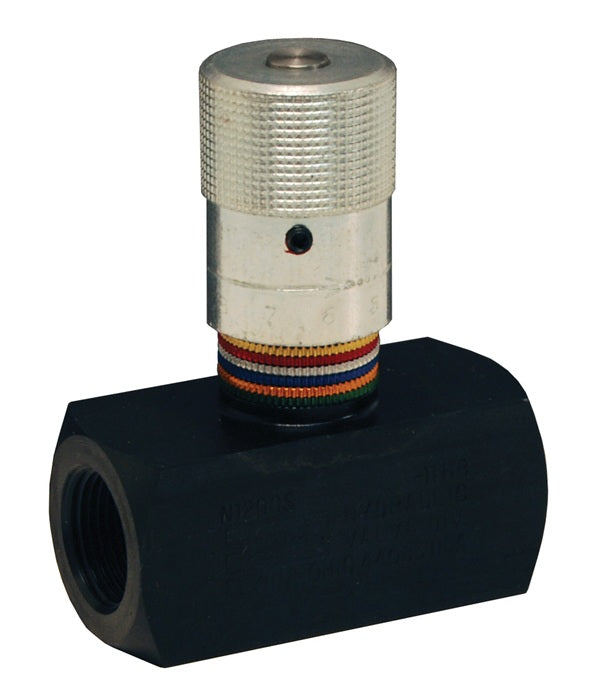

SN1600 by Dixon Valve | Flow Control Valve | Series N | 1" Female NPTF x 1" Female NPTF | Steel

SN1600 by Dixon Valve | Flow Control Valve | Series N | 1" Female NPTF x 1" Female NPTF | Steel

Save $560.70 Save $560.70
$1,401.75
$1,401.75 - $1,401.75
$1,401.75
$841.05
$841.05 - $841.05
$841.05

Dixon Valve & Coupling
Flow Control Valve | Series N | Steel

Ideal for use as speed control on hydraulic systems where a reverse flow check valve is not needed.
Specifications for Variant SKU: SN1600 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPTF, 1in Female NPTF, Some Ends Match
Material(s): Steel
Features:
  • Provides excellent control and reliable shutoff in a very small envelope.
  • Color-coded reference scale on the adjusting knob simplifies setting, resetting, adjusting and quick return to a previous speed setting.
Materials:
  • Steel
Specifications:
  • Maximum operating pressure:
    5000 PSI at 70°F (21°C) for 1/8" - 3/4"
    3000 PSI at 70°F (21°C) for 1" - 1-1/4"
Part Number Female NPTF x Female NPTF
SN200 1/8"
SN400 1/4"
SN600 3/8"
SN800 1/2"
SN1200 3/4"
SN1600 1"
SN2000 1-1/4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
