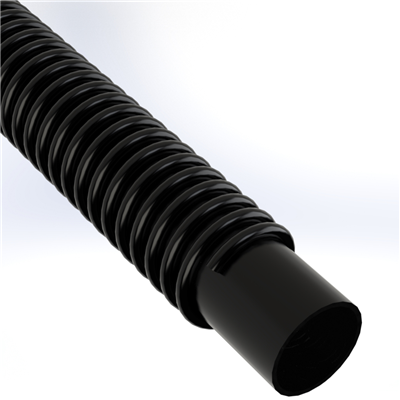

SP-SBR-8.0-50 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 8" Hose ID | 30 PSI | 27 in/Hg Vacuum Rated | Black | 50ft Length

SP-SBR-8.0-50 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 8" Hose ID | 30 PSI | 27 in/Hg Vacuum Rated | Black | 50ft Length

Save $1,201.15 Save $1,201.15
$4,204.02
$4,204.02 - $4,204.02
$4,204.02
$3,002.87
$3,002.87 - $3,002.87
$3,002.87

SIGMA by Texcel
ULTRAVAC-SBR™ Series | SBR Vacuum Hose

Package Quantity: 50 Units

Specifications for Variant SKU: SP-SBR-8.0-50 Texcel | 50 |
Brand: SIGMA
Series: SIGMA-ULTRAVAC-SBR™ Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 9.04in
Tubing Construction: SBR
Cover Construction: PVC
Special Properties: Outer Helix Protection
Material Handling Hose

SIGMA-ULTRAVAC-SBR™ Vacuum Hose

Ultravac SBR™ is a specially compounded vacuum hose suitable for use in a multitude of wet and dry material applications.

1

What is this hose used for?

Lightweight and flexible, it is the ideal hose for vacuum trucks, hydro-excavators and sewer cleaning equipment. Its static dissipative carbon black tube makes it suitable for handling sand, gravel, dry cement, iron chips, grains and other light abrasives.

  • Vacuum trucks
  • Hydro-excavators
  • Sewer cleaning equipment
  • Sand
  • Gravel
  • Dry cement
  • Iron chips
  • Grains
2

What are the key specifications?
Construction

Static dissipating, SBR blended tube with a rigid right-handed PVC helix

Temperature Range

-40°F to +158°F

Safety Factor

3:1

Standard Lengths

50' and 100'

Compares To

180 AR

Branding

SIGMA SERIES - ULTRAVAC SBR - LOT

3

What are the main product features?
  • Excellent flexibility — when compared to PVC/polyurethane hose.
  • Static dissipative carbon black tube
4

Which sizes are available?
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in. Hg) Bend Radius Weight (lbs/ft)
SP-SBR-1.5-100 1-1/2" 1.82" 100' 45 29 2" 0.35
SP-SBR-2.0-100 2" 2.35" 100' 40 29 3" 0.52
SP-SBR-2.5-100 2-1/2" 2.95" 100' 35 29 3" 0.90
SP-SBR-3.0-100 3" 3.50" 100' 35 29 3" 1.08
SP-SBR-4.0-100 4" 4.63" 100' 30 29 5" 1.80
SP-SBR-5.0-100 5" 5.76" 100' 30 28 5" 2.45
SP-SBR-6.0-100 6" 6.73" 100' 30 28 9" 3.05
SP-SBR-8.0-50 8" 9.04" 50' 30 27 15" 5.63
