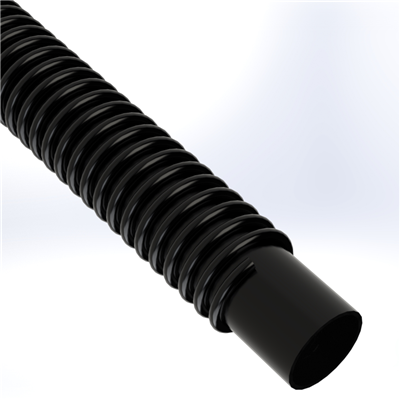

SP-VAC-5.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 5" Hose ID | 30 PSI | 27 in/Hg Vacuum Rated | Black | 100ft Length

SP-VAC-5.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 5" Hose ID | 30 PSI | 27 in/Hg Vacuum Rated | Black | 100ft Length

Save $837.44 Save $837.44
$2,931.03
$2,931.03 - $2,931.03
$2,931.03
$2,093.59
$2,093.59 - $2,093.59
$2,093.59

SIGMA by Texcel
ULTRAVAC™ Series | Polyurethane Vacuum Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SP-VAC-5.0-100- Texcel | 100 |
Brand: SIGMA
Series: SIGMA-ULTRAVAC™ Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.52in
Tubing Construction: Polyurethane
Cover Construction: PVC
Material Handling Hose

SIGMA-ULTRAVAC™ Polyurethane Vacuum Hose

Heavy-duty, abrasion-resistant suction hose for a variety of wet and dry industrial vacuum applications.

1

What is this hose used for?

Ideal for handling a wide range of materials, such as crushed rock, sand, pea gravel, dry cement, grains and slurries. Made with a permanently conductive tube that remains flexible at low temperatures for ease of handling.

  • Vacuum trucks
  • Hydro-excavators
  • Sewer cleaners
  • Street sweepers
⚠ CAUTION: NOT recommended for constant contact with fuels or petroleum products.
2

What are the key specifications?
Construction

Smooth, permanently conductive, high abrasion resistant polyurethane liner with a black, specially formulated polymer and a rigid PVC right-handed helix

Temperature Range

-40°F to +158°F (service temperature depends on actual application)

Safety Factor

3:1

Standard Lengths

50' and 100'

Compares To

ARVAC-SW

Branding

TEXCEL® SIGMA-ULTRAVAC™ - POLYURETHANE SUCTION HOSE - LOT

3

What are the main product features?
  • Superior flexibility at low temperatures
  • Permanently conductive tube
4

Which sizes are available?
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in. Hg) Bend Radius Weight (lbs/ft)
SP-VAC-2.0-100 2" 2-36/64" 100' 30 29 2" 0.74
SP-VAC-3.0-100 3" 3-38/64" 100' 30 29 3" 1.11
SP-VAC-4.0-100 4" 4-47/64" 100' 30 29 4" 1.80
SP-VAC-5.0-100 5" 5-34/64" 100' 30 27 6" 2.32
SP-VAC-6.0-100 6" 6-49/64" 100' 15 27 8" 2.86
SP-VAC-8.0-50 8" 8-7/8" 50' 15 27 14" 4.27
