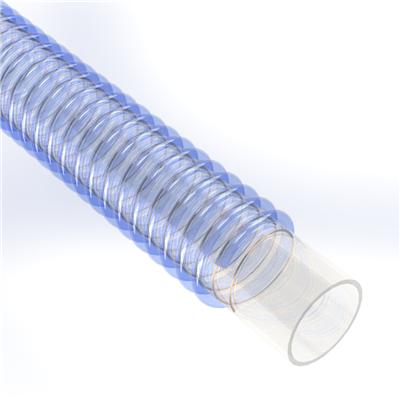

SPVC-FD-4.0-100 by Texcel | SIGMA-FD™ Series | FDA PVC Food-Grade Suction Hose | 4" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

Save $443.48

$1,552.19

$1,552.19 - $1,552.19

$1,552.19

$1,108.71

$1,108.71 - $1,108.71

$1,108.71

SIGMA by Texcel
FD™ Series | FDA PVC Food-Grade Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-FD-4.0-100- Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-FD™ Series
Hose Color(s):	Blue
Internal Diameter:	4in
Outer Diameter:	4.63in
Tubing Construction:	PVC
Special Properties:	Outer Helix Protection

Food & Sanitary Hose

SIGMA-FD™ Food Grade Suction Hose

Heavy-duty, food-grade suction hose for dry and wet material applications.

1

What is this hose used for?

Complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. The smooth bore eliminates material build up, and heavy corrugation provides high flexibility.

Dry food materials
Wet food materials
Meat and poultry plants

2

What are the key specifications?

Construction

Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix

Temperature Range

-4°F to +150°F (service temperature depends on actual application)

Safety Factor

3:1

Compares To

WT/200 SFG

Compliance

FDA, USDA and 3A compliant; phthalate free

Branding

TEXCEL® SIGMA-FD™ - FOOD GRADE SUCTION HOSE - LOT

3

Which sizes are available?

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
SPVC-FD-1.5-100	1-1/2"	1.82"	100'	45	29	2.5"	0.35
SPVC-FD-2.0-100	2"	2.35"	100'	40	29	3"	0.50
SPVC-FD-2.5-100	2-1/2"	2.87"	100'	35	29	5"	0.68
SPVC-FD-3.0-100	3"	3.50"	100'	35	29	6"	1.02
SPVC-FD-4.0-100	4"	4.63"	100'	30	29	8"	1.52
SPVC-FD-5.0-100	5"	—	100'	—	—	—	—
SPVC-FD-6.0-100	6"	6.73"	100'	30	25	12"	3.05
SPVC-FD-8.0-20	8"	9.04"	20'	20	25	16"	5.32

i

It is recommended that all food grade hose be thoroughly flushed prior to initial use.

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
