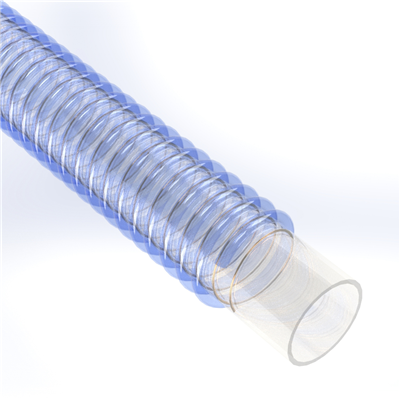

SPVC-FDW-3.0-100 by Texcel | SIGMA-FDW™ Series | FDA PVC Grounded Food-Grade Suction Hose | 3" Hose ID | 35 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

Save $328.68

$1,150.37

$1,150.37 - $1,150.37

$1,150.37

$821.69

$821.69 - $821.69

$821.69

SIGMA by Texcel
FDW™ Series | FDA PVC Grounded Food-Grade Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-FDW-3.0-100- Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-FDW™ Series
Hose Color(s):	Blue
Internal Diameter:	3in
Outer Diameter:	3.50in
Tubing Construction:	PVC
Special Properties:	Outer Helix Protection

Food & Sanitary Hose

SIGMA-FDW™ Grounded Food Grade Suction Hose

Heavy-duty, food-grade suction hose with embedded copper grounding wire for dry and wet material applications.

1

What is this hose used for?

Complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. The smooth bore eliminates material build up, and heavy corrugation provides high flexibility. The embedded wire prevents static electricity build up.

Dry food materials
Wet food materials
Meat and poultry plants

2

What are the key specifications?

Construction

Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix with embedded copper wire for static dissipation

Temperature Range

-4°F to +150°F

Safety Factor

3:1

Compares To

WE/ST 200 SFG

Compliance

FDA, USDA and 3A compliant; phthalate free

Branding

TEXCEL® SIGMA-FDW™ - GROUNDED FOOD GRADE SUCTION HOSE - LOT

3

Which sizes are available?

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
SPVC-FDW-1.5-100	1-1/2"	1.82"	100'	45	29	2.5"	0.44
SPVC-FDW-2.0-100	2"	2.35"	100'	40	29	3"	0.58
SPVC-FDW-2.5-100	2-1/2"	2.87"	100'	35	29	5"	0.75
SPVC-FDW-3.0-100	3"	3.50"	100'	35	29	6"	1.07
SPVC-FDW-4.0-100	4"	4.63"	100'	30	29	8"	1.52
SPVC-FDW-5.0-100	5"	5.63"	100'	30	25	10"	2.39
SPVC-FDW-6.0-20	6"	6.73"	20'	30	25	12"	3.12
SPVC-FDW-6.0-100	6"	6.73"	100'	30	25	12"	3.12

i

It is recommended that all food grade hose be thoroughly flushed prior to initial use.
