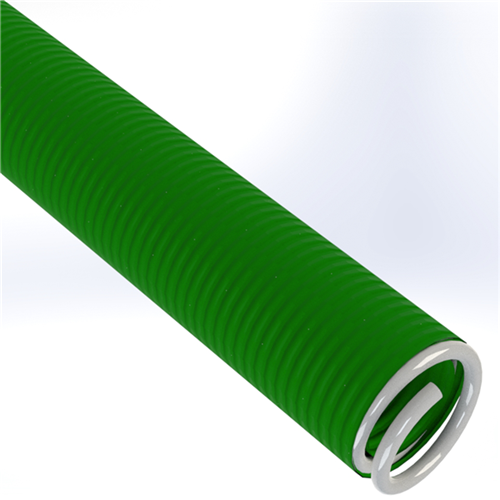

SPVC-GR-4.0-100 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 4" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Green | 100ft Length

Save $330.98

$1,158.43

$1,158.43 - $1,158.43

$1,158.43

$827.45

$827.45 - $827.45

$827.45

SIGMA-HD by Texcel
GREEN PVC™ Series | Heavy-Duty Green PVC Water Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-GR-4.0-100- Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-HD Series
Hose Color(s):	Green
Internal Diameter:	4in
Outer Diameter:	4.67in
Tubing Construction:	PVC

Water Hose

SIGMA™-HD Green PVC Heavy-Duty Water Suction Hose

Premium, heavy-duty yet economical construction for great durability. Smooth bore allows full production flow.

1

2

Construction

Olive-green PVC tube with a green, tough vinyl helix

Cover

Slightly corrugated on 4" and larger sizes

Temperature Range

-4°F to +150°F (service temperature depends on actual application)

Safety Factor

3:1

Compares To

110GR / Series J

Branding

TEXCEL® SIGMA-HD GREEN PVC™ - HEAVY DUTY WATER SUCTION HOSE - LOT

3

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
SPVC-GR-1.5-100	1-1/2"	1.77"	100'	85	29	4"	0.39
SPVC-GR-2.0-100	2"	2.24"	100'	70	29	5"	0.57
SPVC-GR-2.5-100	2-1/2"	2.80"	100'	70	29	6.5"	0.74
SPVC-GR-3.0-100	3"	3.27"	100'	65	29	8.5"	0.94
SPVC-GR-4.0-100	4"	4.67"	100'	65	29	12"	1.48
SPVC-GR-5.0-100	5"	5.51"	100'	50	29	14"	2.15
SPVC-GR-6.0-100	6"	6.93"	100'	50	29	15"	2.89
SPVC-GR-8.0-20	8"	8.66"	20'	45	29	20"	4.37
POLY-G-10.0-25	10"	11.34"	25'	30	29	35"	7.45
POLY-G-12.0-25	12"	13.39"	25'	30	29	40"	8.87
