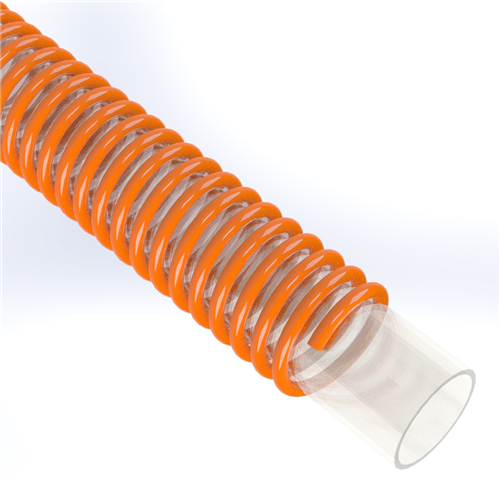

SPVC-PU-1.5-50 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 1-1/2" Hose ID | 20 PSI | 22 in/Hg Vacuum Rated | Clear w/ Orange Helix | 50ft Length

Save $91.86

$321.52

$321.52 - $321.52

$321.52

$229.66

$229.66 - $229.66

$229.66

SIGMA by Texcel
POLY-U™ Series | Lightweight Polyurethane Hose

Package Quantity: 50 Units

Specifications for Variant SKU: SPVC-PU-1.5-50 Texcel \| 50 \|
Brand:	SIGMA
Series:	SIGMA-POLY-U™ Series
Hose Color(s):	Clear/Orange
Internal Diameter:	1.50in
Outer Diameter:	1.91in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Material Handling Hose

SIGMA-POLY-U™ Lightweight Polyurethane Hose

Extremely flexible, lightweight hose whose smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow.

1

Ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment.

2

Construction

Clear polyurethane (ether-based) with an exposed orange, rigid PVC, right-handed helix

Temperature Range

-4°F to +150°F (service temperature depends on actual application)

Safety Factor

3:1

Standard Lengths

50' and 100'

Compares To

Urevac-1 / 150 UDH

Branding

TEXCEL® SIGMA-POLY U™ - LIGHTWEIGHT POLYURETHANE HOSE - LOT

3

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
SPVC-PU-1.5-50	1-1/2"	1.91"	50'	20	22	1"	0.23
SPVC-PU-2.0-50	2"	2.46"	50'	15	21	1.5"	0.32
SPVC-PU-2.5-50	2-1/2"	3.01"	50'	9	19	1.5"	0.34
SPVC-PU-3.0-50	3"	3.60"	50'	8	19	2.5"	0.48
SPVC-PU-4.0-100	4"	4.72"	100'	7	13	3"	0.70
SPVC-PU-5.0-100	5"	5.94"	100'	6	10	4"	0.89
SPVC-PU-6.0-50	6"	7.17"	50'	5	7	5"	1.15
SPVC-PU-8.0-50	8"	9.33"	50'	3	5	7"	1.65
