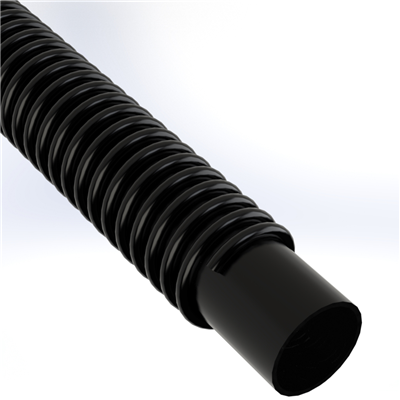

SPVC-URE-B-2.5-100 by Texcel | SIGMA-URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover | 2-1/2" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

SPVC-URE-B-2.5-100 by Texcel | SIGMA-URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover | 2-1/2" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

Save $118.50 Save $118.50
$1,066.50
$1,066.50 - $1,066.50
$1,066.50
$948.00
$948.00 - $948.00
$948.00

SIGMA by Texcel
URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-URE-B-2.5-100 Texcel | 100 |
Brand: SIGMA
Series: SIGMA-URE-B™ Series
Hose Color(s): Black
Internal Diameter: 2.50in
Outer Diameter: 3.10in
Tubing Construction: PVC
Cover Construction: Polyurethane
Technical Data:
Description: Abrasion-resistant, polyurethane tube for material handling in dry applications, such as sandblast recovery lines, roof rock cleaning and other abrasive applications. Made of static-dissipating material that remains flexible at low temperatures for ease of handling. Construction: Black, flexible PVC and smooth with black, rigid, right-handed helix and smooth, polyurethane liner
Safety Factor: 3:1 Temperature: -40°F to +150°F
Compared To: UBK Safety Note: Service temperature depends on actual application
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft
SPVC-URE-B-2.0-100 2" 2.40" 100' 40 29 2" 0.51 lbs
SPVC-URE-B-2.5-100 2-1/2" 3.10" 100' 40 29 4" 0.77 lbs
SPVC-URE-B-3.0-100 3" 3.55" 100' 40 29 4" 0.87 lbs
SPVC-URE-B-4.0-100 4" 4.68" 100' 35 29 6" 1.55 lbs
SPVC-URE-B-5.0-100 5" 5.71" 100' 30 28 10" 2.30 lbs
SPVC-URE-B-6.0-20 6" 7.05" 20' 30 28 12" 3.40 lbs
SPVC-URE-B-6.0-100 6" 7.05" 100' 30 28 12" 3.40 lbs
SPVC-URE-B-8.0-20 8" 9.05" 20' 30 28 15" 4.88 lbs
