SSGC26-8x8 Couplamatic Grip Crimp Coupling - 316 Stainless Steel - JIC 37° - 90° Female Swivel - 1/2" Hose ID - 3/4x16 Thread Size

SSGC26-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Female Swivel | 90° Elbow | 316 Stainless Steel

Save $55.49 Save $55.49
$138.72
$138.72 - $138.72
$138.72
$83.23
$83.23 - $83.23
$83.23

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel- JIC 37° - 90° Female Swivel
Specifications for Variant SKU: SSGC26-8x8 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

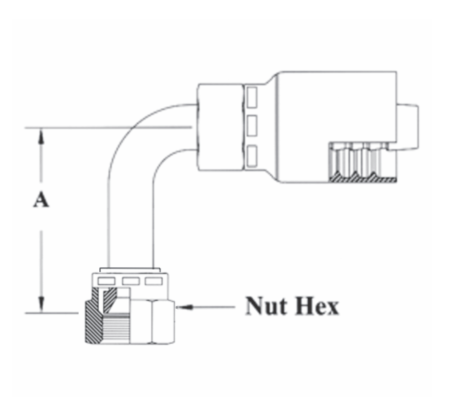

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
SSGC26-4x4 1/4" 7/16x20 1/4" 1.05" 9/16"
SSGC26-6x6 3/8" 9/16x18 3/8" 1.15" 11/16"
SSGC26-8x8 1/2" 3/4x16 1/2" 1.40" 7/8"
