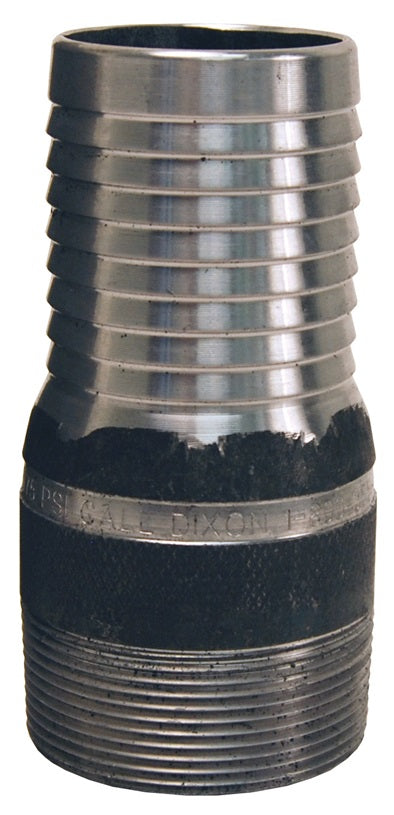

ST25 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 2" Male NPT x 2" Hose ID | Unplated Steel

Name: ST25 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 2" Male NPT x 2" Hose ID | Unplated Steel
Brand: Dixon
SKU: ST25 Dixon
Price: 11.37 USD
Availability: InStock

Save $1.05

$12.42

$12.42 - $12.42

$12.42

$11.37

$11.37 - $11.37

$11.37

Dixon Valve
King Combination Nipple | with Knurled Wrench Grip | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.

Quantity

Specifications for Variant SKU: ST25 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Male NPT, 2in Hose Barb
Material(s):	Steel

Safety Notes:
King Combination Nipples are not recommended for steam. 1-1/4" and above are not for compressible products such as air or nitrogen. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Unplated Steel Part Number	Plated Steel Part Number	Brass Part Number	Aluminum Part Number	Size
ST1	STC1	BST1	AST1	1/2"
ST5	STC5	BST5	AST5	3/4"
ST10	STC10	BST10	AST10	1"
ST15	STC15	-	-	1-1/4"
ST20	STC20	-	-	1-1/2"
ST25	STC25	-	-	2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
